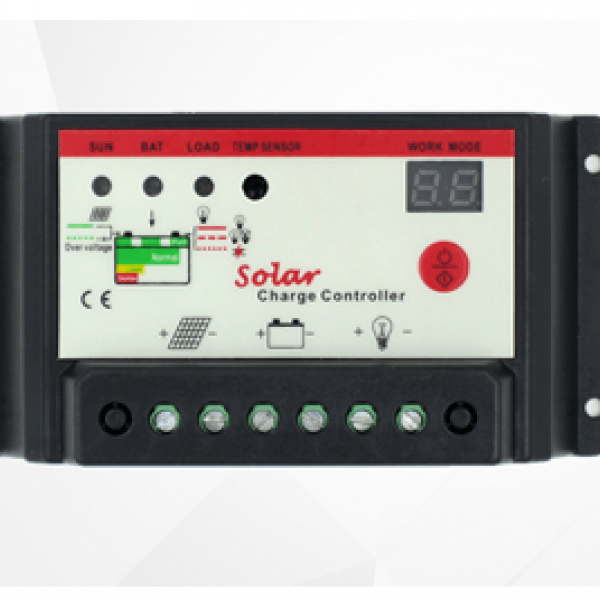

PWM Solar Charger Controller STC-CH 10A 12/24V

โซล่าชาร์จเจอร์ รุ่น STC-CH 10a 12/24v pwm

คุณสมบัติ

  • แบรนด์ใหม่ 100% และมีคุณภาพสูง ·ประสิทธิภาพที่มั่นคงและมีประสิทธิภาพสูง
  • เพื่อความปลอดภัยของคุณโปรดติดตั้งภายใต้คำแนะนำของผู้เชี่ยวชาญในสาขานี้
  • ให้เด็กและบุคคลที่ไม่สามารถอยู่ห่างจากตัวควบคุม
  • เงื่อนไขทั้งหมดมีคำแนะนำ LED
  • หลอด Nixie ที่มุมบนขวาแสดงโหมดการทำงาน
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Features:

  • 100% brand new and high quality
  • Steady performance and high efficiency
  • For your safety please install it under guidance of the professionals in this field
  • Keep children and incapable persons away from the controller
  • All the condition has LED instructions
  • Nixie tube in the top right corner shows its work mode

Specification:

  • Material: plastic
  • Color: as the shows
  • Voltage: DC 12V-24V
  • Rated Current:10A
  • Dimension: Approx. 5.23*2.75*1.29*inch / 13.3*7*3.3cm
  • Mounting hole diameter: Approx. 0.15inch / 0.38cm
  • Mounting hole center distance: Approx. 4.92*1.96inch / 12.5*5cm

Package Included:

  • 1 x Solar panel regulator
  • 1 x User Manual in English and Chinese
Model STC-CH 10a 12/24v pwm
Batt voltage 12V/24V
Charge current 10A
Discharge current 10A
Max Solar input 21
Charge drop <0.2V
Discharge drop <0.25V
Equalization 13.8V
Bulk 14.5V
Acceptance 14.2V PWM
Float 13.8V
Charge reconnect 13.0V
Discharge stop 11.2V
Discharge reconnect 12.6V
Self-consume <10mA
Temperature compensation N/C
Operating temperature -35~+60 ℃
