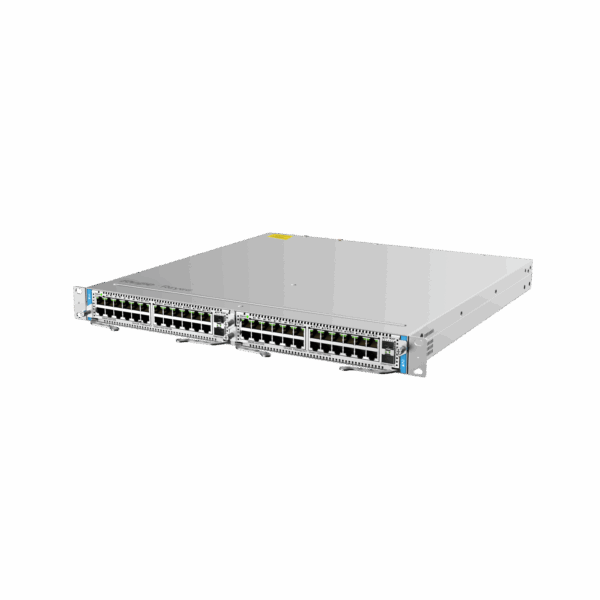

RUIJIE RG-NBS6002

Layer 3 Modular Core Switch

  • Two-slot modular Layer 3 core switch for SMB networks
  • Supports up to 4 optional service line cards
  • 176Gbps switching capacity with 132Mpps forwarding rate
  • Supports 32,000 MAC addresses and 8,000 ARP entries
  • Dual power slots with high-level redundancy for nonstop service
  • Supports Ruijie Cloud management and Virtual Cluster Switching
หมวดหมู่: , , ป้ายกำกับ:

Specifications RUIJIE REYEE RG-NBS6002

Features Description
Product Type Layer 3 Cloud Managed Modular Core Switch
Switch Architecture Modular, 2-Service-Slot Design
Service Slots 2
Power Slots 2
Line Card Support 4 Types, 11 Port Combinations
Switching Capacity 176 Gbps
Forwarding Rate 130.94 Mpps
MAC Address Table 32,000
ARP Table 8,000
HARDWARE
Form Factor 1U Modular Switch
Service Slots 2

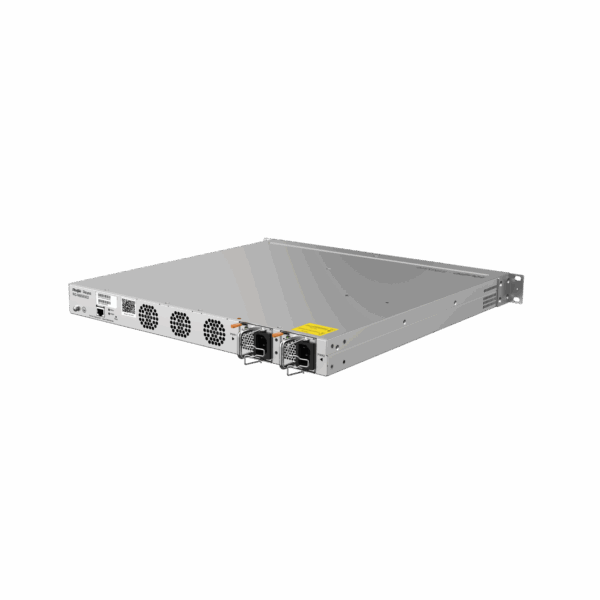

Power Slots 2
Cooling 2 Fans
RJ45 Ports Determined by installed line cards
SFP/SFP+ Ports Determined by installed line cards
LAYER 3 FEATURES
Layer Layer 3
VLAN VLAN Configuration and Management
Routing Layer 3 Routing
ARP Table Up to 8,000 Entries
Port Isolation Supported
Broadcast Storm Control Supported
Jumbo Frame Up to 9,216 Bytes
REDUNDANCY
Power Redundancy 2 Power Slots
Virtual Cluster Switching VCS Supported
Redundant Modules Supported
Service Continuity Designed for High Availability
CLOUD MANAGEMENT
Cloud Management Ruijie Cloud
Zero-Touch Provisioning Supported
Cloud Monitoring Remote Switch Statistics Monitoring
Cloud VLAN Management Supported via Ruijie Cloud App
SECURITY
Port Isolation Supported
Broadcast Storm Control Supported
Security Management Cloud and Web-Based Management
NETWORK PERFORMANCE
Switching Capacity 176 Gbps
Packet Forwarding Rate 130.94 Mpps
MAC Address Capacity 32,000 Entries
ARP Capacity 8,000 Entries
Jumbo Frame 9,216 Bytes
PROTECTION & RELIABILITY
Service Port Surge Protection ±6 kV Common Mode
Power Connector Surge Protection ±6 kV Common and Differential Mode
MTBF 400,000 Hours
Warranty 5 Years
ENVIRONMENT
Operating Temperature 0°C to +50°C
Operating Altitude -500 m to +5,000 m
Storage Altitude -500 m to +5,000 m

Note: The RG-NBS6002 is a modular Layer 3 core switch. Port quantity and interface types depend on the line cards installed in its two service slots.

Important: Line cards and power modules are required to configure the required port combination and system capacity. Verify compatibility of the selected modules before installation.
