RG-NIS3100-8GT2SFP-HP

RG-NIS3100-8GT2SFP-HP

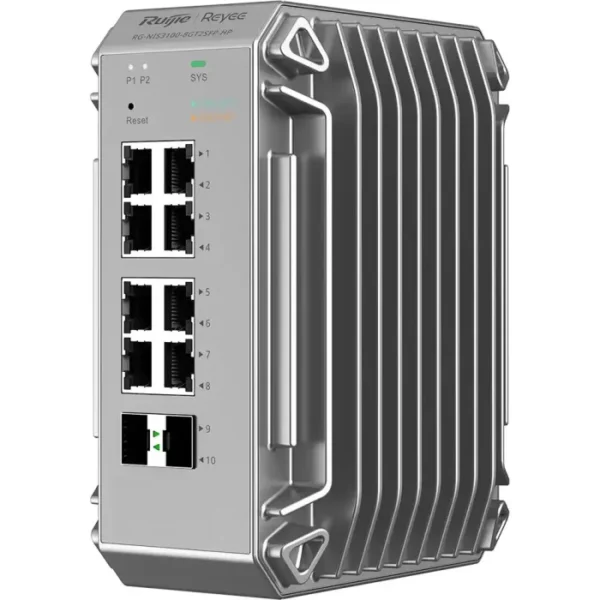

Ruijie Reyee RG-NIS3100-8GT2SFP-HP

8-Port Gigabit Industrial Managed PoE+ Switch

  • 8× Gigabit PoE+ RJ45 ports and 2× Gigabit SFP uplink ports
  • IEEE 802.3af/at PoE+ with up to 30W per port and 240W total PoE budget
  • 20Gbps switching capacity with 14.88Mpps forwarding rate
  • Supports STP/RSTP, ERPS, SNMP, VLAN, LLDP-MED, IGMP Snooping and ACL
  • Industrial-grade design with IP40 protection and 6kV surge protection
  • 12–56V DC power input with -40°C to +80°C operating temperature support
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-NIS3100-8GT2SFP-HP

Features Specifications
Product Type 10-Port Gigabit Managed Industrial PoE+ Switch
RJ45 Ports 8 × 10/100/1000BASE-T
SFP Ports 2 × 1GE SFP
PoE Ports 8 × PoE+
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power Budget 240W
Maximum Power per Port 30W
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps

Network Parameters

Item Specifications
MAC Address Table 8K
Jumbo Frame 9216 Bytes
VLAN Up to 4094 VLANs
STP / RSTP Supported
ERPS Supported, Service Failover Within 50ms
IGMP Snooping v1 / v2 / v3
DHCP Snooping Supported
ACL Supported
Loop Prevention Supported
LLDP / LLDP-MED Supported
SNMP SNMPv1 / SNMPv2c / SNMPv3

Management & PoE

Item Specifications
Management Web / Cloud / App
PoE Watchdog Supported
Port Isolation Supported
Broadcast Storm Control Supported
Static Link Aggregation Supported
Port Mirroring Supported
QoS Supported

Protection

Item Specifications
Surge Protection 6kV Service Port, 4kV Power Connector
ESD Protection 8kV Air Discharge
Ingress Protection IP40
Conformal Coating 50μm PCB Conformal Coating
Enclosure Full Aluminum Alloy

Electrical

Item Specifications
Power Supply 12 ~ 56V DC
PoE Power Budget 60W @ 12V DC / 120W @ 24V DC / 240W @ 48V DC
Maximum Power Consumption 260W
Power Supply Adapter Not Included

General

Item Specifications
Installation DIN Rail / Wall Mount
Dimensions (W × H × D) 85 × 132 × 165mm
Weight 1.42kg
Operating Temperature -40°C ~ 65°C in Sealed Cabinet; Up to 80°C with Adequate Ventilation
Operating Humidity 5% ~ 95% RH, Non-Condensing
Operating Altitude -500m ~ 5,000m
MTBF 400,000 Hours
Warranty 5 Years

Note: The RG-NIS3100-8GT2SFP-HP is a 10-port Gigabit managed industrial PoE+ switch featuring 8 PoE+ ports, 2 Gigabit SFP uplink ports, a 240W PoE budget, 20Gbps switching capacity, IP40 protection, 8kV ESD protection and industrial-grade operation for harsh environments.

Important: Specifications are based on the official Ruijie Reyee RG-NIS3100-8GT2SFP-HP product page and dedicated datasheet.
