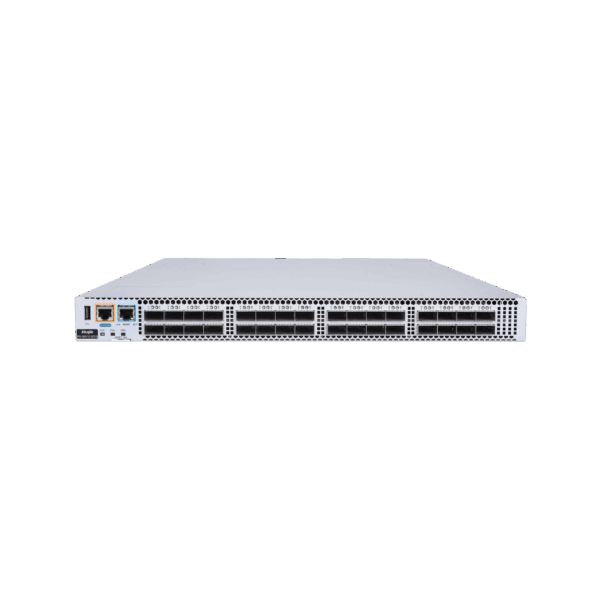

Specifications Ruijie RG-S6510-32CQ
| Features | Description |
|---|---|
| Product Type | 100GE Data Center Access Switch |
| Series | RG-S6510 Series Data Center Switch |
| Service Ports | 32 × 100GE QSFP28 |
| Switching Capacity | 6.4Tbps |
| Forwarding Rate | 2,030Mpps |
| Packet Buffer | 32MB |
| VLAN | Up to 4,094 VLANs |
| Management | Web / CLI / Console / SSH / Telnet / SNMP / Telemetry |
| HARDWARE | |
|---|---|
| 100GE Ports | 32 × 100GE QSFP28 |
| Breakout Support | Supports breakout to 50GE / 40GE / 25GE / 10GE |
| Management Port | 1 × RJ45 Management Port |
| Console Port | 1 × RJ45 Console Port |
| USB Port | 1 × USB 2.0 Type-A |
| Power Module Slots | 2 × Power Module Slots |
| Fan Module Slots | 5 × Fan Module Slots |
| Power Redundancy | 1+1 |
| Fan Redundancy | 4+1 |
| Rack Height | 1U |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 6.4Tbps |
| Forwarding Rate | 2,030Mpps |
| Packet Buffer | 32MB |
| Jumbo Frame | Supported |
| MAC Address Table | 128K |
| ARP Table | 80K |
| IPv4 Host Route Table | Up to 740K |
| IPv6 Host Route Table | Up to 140K |
| LAYER 2 FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, up to 4,094 VLANs |
| Link Aggregation | Static LAG / LACP |
| M-LAG | Supported |
| STP | STP / RSTP / MSTP |
| STP Protection | Root Guard / BPDU Guard |
| IGMP Snooping | Supported |
| MLD Snooping | Supported |
| QinQ | IEEE 802.1ad QinQ / Selective QinQ |
| LLDP | Supported |
| Jumbo Frame | Supported |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | RIPv1 / RIPv2 |
| OSPF | OSPFv2 |
| OSPFv3 | Supported |
| BGP | BGP4 / BGP4+ |
| IS-IS | Supported |
| Policy-Based Routing | Supported |
| ECMP | Supported |
| WCMP | Supported |
| VRRP | Supported |
| BFD | Supported |
| IPv4 Multicast | IGMP / PIM-SM / PIM-SSM / PIM-DM |
| DATA CENTER FEATURES | |
|---|---|
| VXLAN | VXLAN Bridging / VXLAN Routing |
| EVPN VXLAN | Supported |
| M-LAG | Supported |
| VSU | Supported |
| De-stacking | Supported |
| RDMA | Supported |
| RoCEv2 | Supported |
| PFC | Priority Flow Control |
| ECN | Explicit Congestion Notification |
| Lossless Ethernet | Supported |
| QOS & TRAFFIC MANAGEMENT | |
|---|---|
| QoS Classification | IEEE 802.1p / ToS / DSCP |
| ACL Traffic Classification | Supported |
| Priority Marking | Mark / Remark |
| Queue Scheduling | SP / WRR / DRR / SP+WRR / SP+DRR |
| Congestion Avoidance | WRED / Tail Drop |
| Rate Limiting | Ingress / Egress Rate Limiting and CAR |
| Microburst Detection | Supported |
| SECURITY | |
|---|---|
| Network Foundation Protection | NFPP |
| CPU Protection | CPP |
| DoS / DDoS Protection | Supported |
| ACL | Basic / Extended / Port-based / VLAN-based ACL |
| IPv6 ACL | Supported |
| DHCP Snooping | Supported |
| ARP Protection | ARP Anti-Spoofing / ARP Check |
| IP Source Guard | Supported |
| uRPF | Supported |
| RADIUS | Supported |
| TACACS+ | Supported |
| Broadcast Suppression | Supported |
| MANAGEMENT & MONITORING | |
|---|---|
| SNMP | SNMP v1/v2c/v3 |
| CLI | Console / Telnet / SSH |
| Web Management | Supported |
| RMON | Supported |
| Telemetry | Supported |
| gRPC | Supported |
| sFlow | Supported |
| SPAN | Supported |
| NETCONF | Supported |
| Syslog | Supported |
| ZTP | Supported |
| HIGH AVAILABILITY | |
|---|---|
| Power Redundancy | 1+1 Redundant Power Supply |
| Fan Redundancy | 4+1 Redundant Fan Modules |
| M-LAG | Supported |
| VSU | Supported |
| VRRP | Supported |
| BFD | Supported |
| Hot-Swappable Power Modules | Supported |
| Hot-Swappable Fan Modules | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | 2 × Power Modules, 1+1 Redundancy |
| Power Module | RG-PA550I-F 550W AC/HVDC Power Module |
| Maximum Power Consumption | ≤450W |
| Typical Power Consumption | 270W |
| Static Power Consumption | 150W |
| Cooling | Intelligent Fan Cooling |
| Dimensions | 442 × 560 × 44mm |
| Installation | 1U Rack Mounting |
| Net Weight | 8.4kg Empty Chassis / 11.4kg with 2 Power Modules and 5 Fan Modules |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| Operating Altitude | Up to 5,000m |
Note: The Ruijie RG-S6510-32CQ is a high-performance, high-density 100GE Data Center Access Switch designed for cloud data centers and high-end campus networks. It features 32 × 100GE QSFP28 ports with line-rate forwarding and supports flexible breakout configurations for 50GE, 40GE, 25GE and 10GE connectivity. It provides 6.4Tbps switching capacity, 2,030Mpps forwarding performance and a 32MB packet buffer. The switch supports M-LAG, VSU, De-stacking, VXLAN, EVPN VXLAN, RDMA, RoCEv2, PFC and ECN for high-performance and lossless data center networking.
Important: The Ruijie RG-S6510-32CQ is a 100GE Data Center Access Switch featuring 32 × 100GE QSFP28 ports. It provides 6.4Tbps switching capacity and 2,030Mpps forwarding rate, with a 32MB packet buffer. The switch supports IEEE 802.1Q VLAN, LACP, M-LAG, VSU, VXLAN, EVPN VXLAN, BGP, OSPF, IS-IS, ECMP, VRRP, RDMA, RoCEv2, PFC and ECN. It features 1+1 power redundancy and 4+1 fan redundancy with hot-swappable modules. The 1U chassis measures 442 × 560 × 44mm and has maximum power consumption of 450W.
