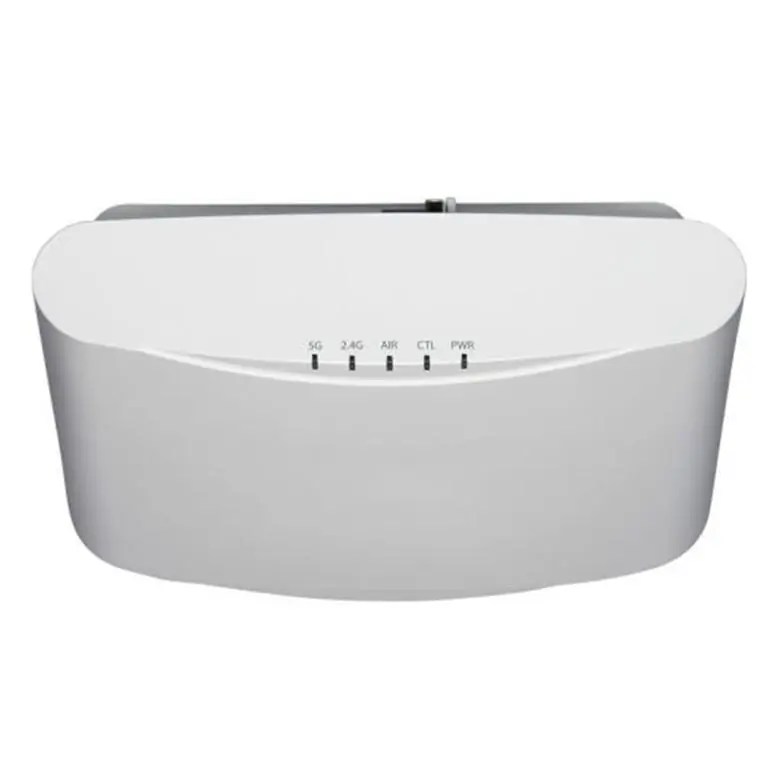

RUCKUS R720
RUCKUS รุ่น R720
Indoor Access Point
คุณสมบัติ
- Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-Gigabit Backhaul for Ultra-Dense Device Environments
- four-stream MU-MIMO 4×4:4
- dual-band (5GHz and 2.4GHz concurrent) Wave 2 802.11ac
- 1733 Mbps (5 GHz) and 800 Mbps (2.4 GHz) of user data rate
- One 2.5Gbps Ethernet port and one 1Gbps Ethernet port
- Support POE
- รองรับ 512 User
- BeamFlex+ เทคโนโลยี่ ลดการรบกวนของสัญญาณ
- Lifetime Limited Warranty
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
General Specifications
| Antenna Patterns, per band | 4000+ |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 1 x 1GbE and 1 x 2.5GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 600 Mb/s |
| PHY Rate at 5 GHz, maximum | 1733 Mb/s |
| Radio Chains and Streams | 4×4:4 SU-MIMO & MU-MIMO |
| Rx Sensitivity at 2.4 GHz | -104 dBm |
| Rx Sensitivity at 5 GHz | -104 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | -10 °C to +50 °C (+25 °F to +122 °F) |
