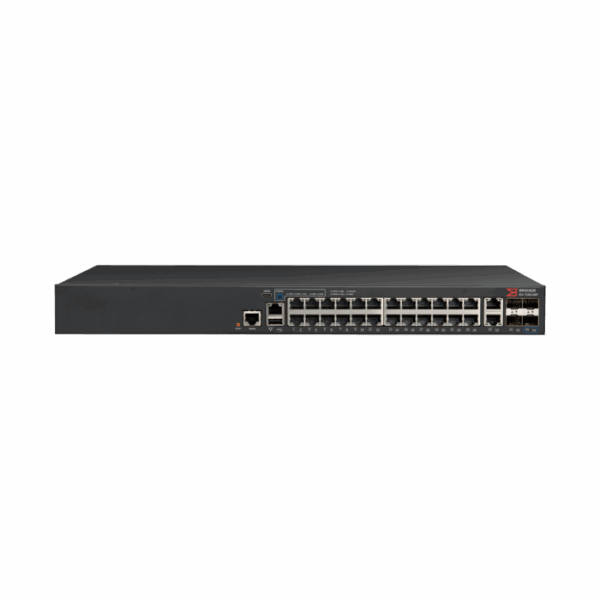

RUCKUS ICX 7150-24
RUCKUS รุ่น ICX 7150-24
Entry-Level 24 Ports 1G Switch
คุณสมบัติ
-
24× 10/100/1000 Mbps RJ-45 ports
-
2× 10/100/1000 Mbps uplink RJ-45 ports
-
4× 1/10 GbE uplink/stacking SFP/SFP+ ports
-
Switching capacity: 132 Gbps
-
Forwarding capacity: 98 Mpps
-
Power supply: 36 W
- Lifetime Limited Warranty
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications
General Specifications
| Switching Capacity, maximum | 132 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 + 2 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 480 Gb/s |
| PoE/PoE+ | No |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | Yes |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
