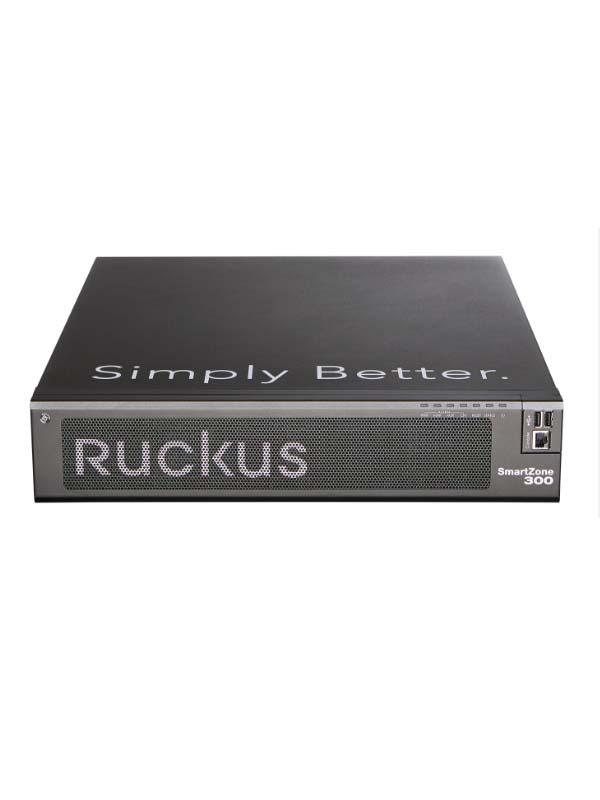

RUCKUS SmartZone 300
RUCKUS รุ่น SmartZone 300
Scalable network controller for service providers and large enterprises
คุณสมบัติ
- รองรับ Access Point ได้สูงสุด : 10,000
- รองรับ Switches สูงสุด : 2,000
- รองรับ WLANs (BSSID) สูงสุด : 6,144
- รองรับผู้ใช้งานสูดสุด: 100,000
- Guest Access: รองรับ
- Captive Portal: รองรับ
- Mesh: รองรับ
- Hotspot 2.0: รองรับ
- ขนาด: 430 x 518 x 88.6 mm
- น้ำหนัก: 24.3 kg
- ทำงานได้ในอุณหภูมิ: 5 ºC to 55 ºC
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| General Information | |
|---|---|
| Category | Network management system |
| Description | Ruckus SmartZone 300 – Network management device – 10 GigE – DC power – 2U – GSA Trade Compliant – rack-mountable |
| Manufacturer | Ruckus Wireless |
| Main Specifications | |
| Dimensions & Weight / Weight | 2 |
| Lead Time | 14 |
| Lead Time Effective Date | 03/27/21 |
| Quantity Measurement | EA |
| Environmental Parameters | |
| Humidity Range Operating | 5 – 85% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces | 6 x 1000Base-T – RJ-45 ¦ 4 x 10Gb Ethernet – SFP+ ¦ 4 x USB ¦ 2 x console – RJ-45 |
| General | |
| Depth | 51.8 cm |
| Device Type | Network management device |
| Height | 8.86 cm |
| Height (Rack Units) | 2U |
| Weight | 24.3 kg |
| Width | 43 cm |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, VCCI, BSMI CNS 13438 Class A, EN55022, ICES-003, EN55024, CISPR 22, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, LVD, AS/NZS CISPR 22, CSA 60950-1 |
| Pricing Type | GSA Trade Compliant |
| Networking | |
| Authentication Method | RADIUS |
| Capacity | Manageable access points: 30000 per cluster of 4 unit ¦ Manageable access points: 10000 ¦ Wireless LANs: 6144 |
| Compliant Standards | IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Encryption Algorithm | WPA, WPA2, EAP-SIM, EAP-AKA |
| Features | Syslog support, Role-Based Access Control (RBAC), HotSpot 2.0, WISPr authentication, secure multi-operator login (RBAC), RESTful APIs |
| Form Factor | Rack-mountable |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, CLI |
| Power | |
| Installed Qty | 2 |
| Power Consumption Operational | 1400 Watt |
| Power Device | Internal power supply – hot-plug |
| Power Redundancy | Yes |
| Voltage Required | DC -36 -72 V |
