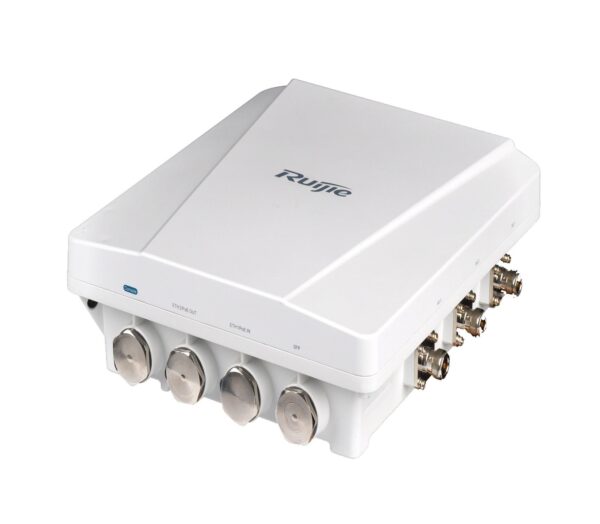

Ruijie RG-AP630(IDA2)
Ruijie รุ่น RG-AP630(IDA2)
Outdoor Access Point
คุณสมบัติ
- Wi-Fi 802.11ac Wave2 แบบติดตั้งภายนอก
- อัตราการเข้าถึงสูงสุดของเสาอากาศในตัวคือ 1733Mbps + 800Mbps
- และระบบเสาอากาศสวิตช์ภายในและภายนอก (ต้องซื้อเสาอากาศภายนอกแยกต่างหาก)
- รองรับ 802.11a / b / g / n / ac
- รองรับการสลับโหมด Fat / Fit
- แหล่งจ่ายไฟ PoE + (อุปกรณ์จ่าย PoE จำเป็นต้องซื้อแยกต่างหาก)
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| Model | RG-AP630(IDA2) | |
| Target Deployments | For big campus, wireless city, harbour, storage room, mine | |
|
Basic Specifications |
Radio |
Concurrent dual-radio dual-band |
| Protocol |
802.11a/b/g/n/ac Wave2 |
|
| Operating Bands |
802.11b/g/n: 2.4GHz to 2.483GHz |
|
|
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz |
||
|
(vary depending on countries) |
||
| Antenna |
Built-in Directional Smart Antenna (support external/internal antenna switching) |
|
| Antenna Loba Orientation |
Internal Directional: Horizontal 60 degrees,Vertical 30 degrees |
|
| Antenna Gain |
10dBi |
|
| Max Throughput |
Build-in antenna model: 800Mbps@2.4G |
|
|
1733Mbps@5G |
||
|
2.533Gbps per AP; |
||
|
External antenna model: |
||
|
600Mbps@2.4G |
||
|
1300Mbps@5G |
||
|
1.9Gbps per AP |
||
| Spatial Streams |
4 |
|
| Modulation |
OFDM: BPSK@6/9Mbps |
|
|
QPSK@12/18Mbps |
||
|
16-QAM@24Mbps |
||
|
64-QAM@48/54Mbps |
||
|
DSSS: DBPSK@1Mbps |
||
|
DQPSK@2Mbps |
||
|
CCK@5.5/11Mbps |
||
|
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
||
| Receiver Sensitivity |
11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps) |
|
|
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), – 77dBm(54Mbps) |
||
|
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15 |
||
|
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9) |
||
|
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9) |
||
|
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9) |
||
| Maximum Transmit Power |
27dBm |
|
|
Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations. |
||
| Adjustable Power |
1dBm |
|
| IP Rating | IP67 | |
|
Ports |
Service Port |
One 10/100/1000Base-T Port（ETH1/PoE IN)；One 10/100/1000Base-T Port(ETH2)； |
|
One 1000M SFP Port(Combo Port) |
||
| Management Port |
1 Console Port(RJ45) |
|
|
Power |
Power Supply |
PoE+ (802.3at) |
| Power Consumption |
<25W |
|
| WLAN | Maximum clients per AP |
Up to 512 |
| SSID capacity |
Up to 16 per radio |
|
|
Up to 32 per AP |
||
| SSID hiding |
Support |
|
| Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID |
Support |
|
| Remote Intelligent Perception Technology (RIPT) |
Support |
|
| X-speed |
Support |
|
| Intelligent load balancing based on the number of users or traffic |
Support |
|
| STA control |
SSID/radio-based |
|
| Bandwidth control |
STA/SSID/AP-based speed control |
|
| Preference for 5GHz (band select) |
Support |
|
| Wireless position tracking |
Support |
|
| Dynamic Frequency Selection(DFS) |
Future Release Support |
|
|
Security |
PSK, Web, and 802.1x authentication |
Support |
| Data encryption |
WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|
| QR code authentication |
Support |
|
| SMS authentication |
Support |
|
| PEAP authentication |
Support |
|
| Data frame filtering |
Whitelist, static/dynamic blacklist |
|
| User isolation |
Support |
|
| Rogue AP detection and countermeasure |
Support |
|
| Dynamic ACL assignment |
Support |
|
| WAPI |
Support |
|
| RADIUS |
Support |
|
| CPU Protection Policy (CPP) |
Support |
|
| Network Foundation Protection Policy (NFPP) |
Support |
|
| Wireless Intrusion Detection System(WIDS) |
Support |
|
| Wireless Intrusion Prevention System (WIPS) |
Support |
|
| Routing | IPv4 address |
Static IP address or DHCP reservation |
| IPv6 CAPWAP tunnel |
Support |
|
| ICMPv6 |
Support |
|
| IPv6 address |
Manual or automatic configuration |
|
| Multicast |
Support |
|
| Management and Maintenance | Network management |
SNMP v1/v2C/v3, Telnet, SSH, TFTP, and web management |
| Visualized wireless heat map analysis |
Support |
|
|
(need to integrate with SNC) |
||
| Real-time spectrum analysis |
Support |
|
|
(need to integrate with SNC) |
||
| Fault detection and alarm |
Support |
|
| Cloud AC management |
Support |
|
| Statistics and logs |
Support |
|
| FAT/FIT switching |
The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. |
|
|
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. |
||
| External Characteristics | Lock |
Support |
| LED Indicators |
Power status and WDS signal strength |
|
| Relevant Standard | Wi-Fi Alliance Certification |
Support |
| Safety Standard |
GB4943, , EN/IEC 60950-1, EN/IEC 60950-22 |
|
| EMC Standard |
GB9254-2008, EN301 489, EN55022 |
|
| Health Standard |
EN 50385, |
|
| Radio Standard |
FCC Part15,EN300328, EN301893 |
|
| Vibration Standard |
GB/T 2423 |
|
|
Specifications |
Dimensions (W x D x H) (mm) |
276 × 246 × 90 |
| Weight |
<2.5kg |
|
| Work Environment | Temperature |
Operating Temperature: -40°C to 65°C (heater module will be enabled at -15°C) |
|
Storage Temperature: -40°C to 85°C |
||
| Humidity |
Operating Humidity: 0% to 100% (non-condensing) |
|
|
Storage Humidity: 0% to 100% (non-condensing) |
||
| Installation Mode |
Wall/pole-mount installation |
|
