Product Specification

Overview

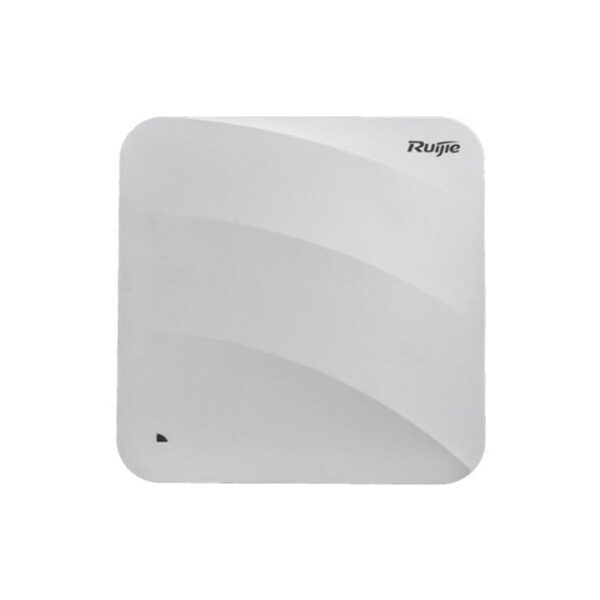

Ruijie RG-AP730-L Wireless Access Point AC Tri-Band Wave 2 ความเร็วสูงสุด 2.130Gbps Dual-Band 2×2 MU-MIMO, Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control

รองรับการทำ Authenticate แบบ Captive Portal, Social Login

พร้อม Ruijie Cloud License แบบ Lifetime

Type

Indoor Ceiling/Wall-mounting

Radio

Tri-band (2.4G+5G+5G)

Protocol

802.11a/b/g/n/ac Wave 2

Operating Bands

802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

Antenna

Built-in Antenna

Max Throughput

2,130Mbps

Spatial Streams

2 x 2

Maximum Transmit Power

100 mW

IP Rating

IP41

Ports

1 10/100/1000BASE-T Ethernet uplink

Port LAN1 supports PoE+

1 Console Port

Power Supply

Not Include

Local power supply (DC 48V/0.6A)

PoE (802.3at）

Power Consumption

<25.5W

Maximum clients per AP

768

BSSID capacity

48

Remote Intelligent Perception Technology (RIPT)

Support

Intelligent load balancing based on the number of users or traffic

Support

STA control

Support

Bandwidth control

Support

Preference for 5GHz (band select)

Support

Band Steering (5G Priority)

Support

PSK, Web, 802.1x authentication

Support

PPSK authentication

Support

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

PEAP authentication

Support

User isolation

Support

Rogue AP detection and countermeasure

Support

RADIUS

Support

Wireless Intrusion Detection System(WIDS)

Support

Wireless Intrusion Prevention System (WIPS)

Support

IPv4 address

Static IP address or DHCP reservation

IPv6 address

Manual or automatic configuration

Multicast

Multicast to unicast conversion

Network management

SNMP v1/v2C/v3, Telnet, TFTP, Web management

Cloud AC management

Support

FAT/FIT switching

Support

Lock

Support

LED Indicators

1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)

Wi-Fi Alliance Certification

Support

Radio Standard

EN300 328
EN301 893

EMC Standard

GB9254
EN301 489-1
EN301 489-17

Safety Standard

GB4943
EN/IEC 60950-1

Dimensions (W x D x H) (mm)

230x230x42

Weight

1.3kg

Temperature

Operating Temperature:
-10°C to 50°C
Storage Temperature:
-40°C to 70°C

Humidity

Operating Humidity:
5% to 95% (non-condensing)
Storage Temperature:
5% to 95% (non-condensing)
