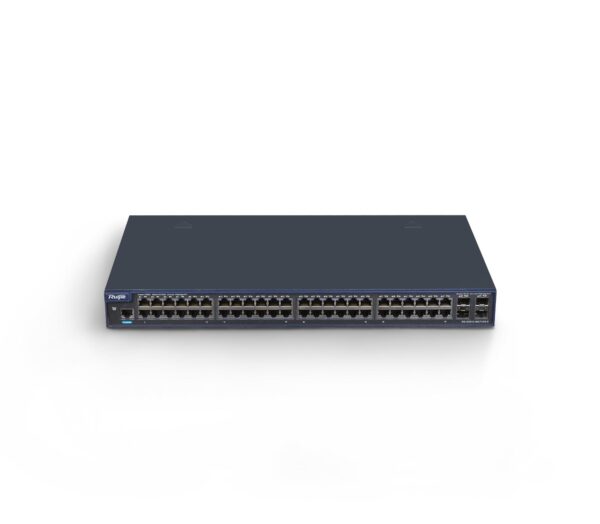

Ruijie RG-S2910-48GT4XS-E

Ruijie รุ่น RG-S2910-48GT4XS-E

L2- Managed Gigabit Switch 48 Port, 4 SFP+ 10Gbps

คุณสมบัติ

Ruijie RG-S2910-48GT4XS-E L2-Managed Gigabit Switch 48 Port พร้อม 4 Port SFP+ ความเร็ว 10Gbps
รองรับ SDN OpenFlow, VLAN, QOS

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), Ruijie, Switches ป้ายกำกับ: Ruijie

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คำอธิบาย
ข้อมูลเพิ่มเติม

Product Specification
Overview	Ruijie RG-S2910-48GT4XS-E L2-Managed Gigabit Switch 48 Port พร้อม 4 Port SFP+ ความเร็ว 10Gbps รองรับ SDN OpenFlow, VLAN, QOS
Ports	48 10/100/1000BASE-T ports 4 1G/10GBASE-X SFP+ ports (non-combo)
Expansion Slots	N/A
Modular Power Slots	N/A
Fan Slots	N/A
Expansion Modules	N/A
Management Ports	1 console port
Switching Capacity	264Gbps
Packet Forwarding Rate	132Mpps
Max. Number of 10GE Ports	4
PoE	N/A
Port Buffer	1.5MB
RAM	512MB
ARP Table	1,000
MAC Address	16K
Routing Table Size (IPv4/IPv6)	500 (IPv4/IPv6)
ACL Entries	In: 1,500 Out: 500
VLAN	4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN
QinQ	Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching
Link Aggregation	AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance
Port Mirroring	Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN # RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring
Spanning Tree Protocols	IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard,Spanning Tree Root Guard(STRG)
DHCP	DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay,DHCP Snooping Option 82
Multiple Spanning Tree Protocol (MSTP) Instances	64
Maximum Aggregation Port (AP)	128
SDN	OpenFlow 1.0 & 1.3
VSU (Virtual Switch Unit)	Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended* ), Local and distant stacking, Cross-chassis link aggregation in the stack, Stacking via 10G Ethernet ports # All models support the features above except RG-S2910-10GT2SFP-P-E
SCN (Simplicity Campus Network)	Support establishing large L2 network with core devices and achieve resources pooling via VSU and VSD. Only management on core devices is required and hence simplifies horizontal and vertical network management and maintenance. # All models support the features above except RG-S2910-10GT2SFP-P-E
Zero Configuration	CWMP(TR069)
L2 Features	MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast/Multicast/Unknown unicast storm control, IGMP v1/v2/v3 snooping, IPv6 MLD Snooping v1/v2,IGMP SGVL/IVGL, IGMP querier, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 ERPS, Layer 2 protocol tunnel
Layer 2 Protocols	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1D, IEEE802.1w, IEEE802.1s
IPv4 Features	Ping, Traceroute
IPv6 Features	ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address
IPv4 Routing Protocols	Static Routing, RIP, OSPF v1/v2
Basic IPv6 Protocols	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert
IPv6 Routing Protocols	Static routing, RIPng, OSPF v3
Multicast	IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing
G.8032	Support
ACL	Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect, Time-based ACL,Router ACL, VLAN ACL, Port-Based ACL
QoS	802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities; flow-based rate limiting with the minimum granularity of 8Kbps, sysnet, Dynamic QoS
Reliability	VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)
EEE Format	Support IEEE 802.3az standard
Security	Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+;Change of Authorization; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection, CoA(RADIUS change of authorization),SCP (Secure Copy)Dynamic ARP Inspection(DAI)
Manageability	NMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web, SFLOW,HTTP or HTTPS # RG-S2910-10GT2SFP-P-E supports SNMPv2c, CLI (Telnet / Console), Syslog, RMON (1, 2, 3, 9), Web
Hot Patch	Support
Smart Temperature Control	Auto fan speed adjustment; Fan malfunction alerts; Fan status check # All models support the features above except RG-S2910-10GT2SFP-P-E
Smart Power Supply	N/A
Other Protocols	FTP, TFTP, DNS client, DNS static
Dimensions (W x D x H) (mm)	440 × 260 × 43.6
Rack Height	1RU
Weight	≤4kg
MTBF (hours)	511280
Lightning Protection	4KV
Power Supply	AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50/60Hz Rated current: 1.5AHVDC input: Input voltage range: 192V to 290V DC Input current range: 0.5A to 0.1A
Power Consumption	50W
PoE Power	N/A
Temperature	Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C
Humidity	Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH
Operating Altitude	-500m to 5,000m
