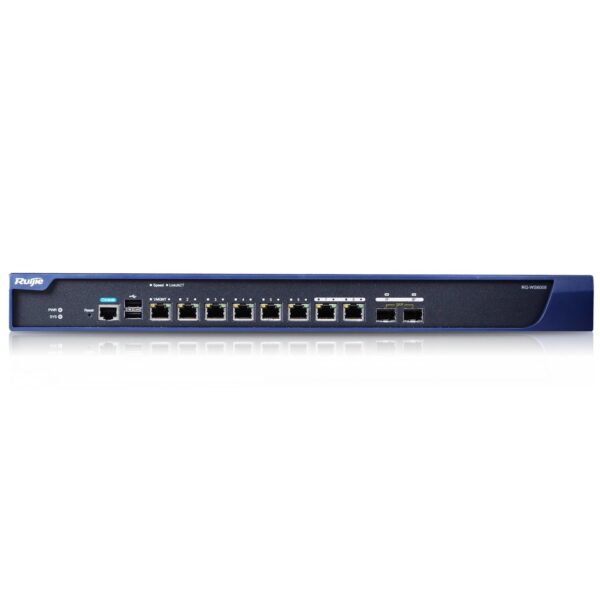

Ruijie RG-WS6008

Ruijie รุ่น RG-WS6008

Next-Gen Wireless Controller รองรับ AP สูงสุด 448, เชื่อมต่อได้ 6,400 Client

คุณสมบัติ

Ruijie RG-WS6008 Next-Gen Wireless Controller
รองรับการ Managed Access Point ได้ 32 AP (Defualt) สูงสุด 224 APs และ 448 Wall AP
เมื่อมีการ Upgrade License รองรับการเชื่อมต่อได้ 6,400 Client
พร้อม 6 Port Lan Gigabit, 2 Port SFP

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), Ruijie, Wireless Controller ป้ายกำกับ: Ruijie

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คำอธิบาย
ข้อมูลเพิ่มเติม

Product Specification
Overview	Ruijie RG-WS6008 Next-Gen Wireless Controller รองรับการ Managed Access Point ได้ 32 AP (Defualt) สูงสุด 224 APs และ 448 Wall AP เมื่อมีการ Upgrade License รองรับการเชื่อมต่อได้ 6,400 Client พร้อม 6 Port Lan Gigabit, 2 Port SFP
Model	RG-WS6008
Model	RG-WS6008
Interfaces
Service Ports	6x 1000BASE-T ports 2x 1000BASE-T/1000BASE-X ports (combo)
Console Ports	1x Console Port
USB Ports	2x USB ports
Performance
Switching Capacity	N/A
Packet Forwarding Rate	N/A
Default Number of Manageable APs	32
Maximum Number of Manageable APs	224 APs or 448 wall APs (with license upgrade)
Maximum Number of Configurable APs	2,048
Maximum Number of Clients	6,400
802.11 Performance	8Gbps
VLAN	4,094
Maximum Number of Clients Supported by the Built-in Portal	1,500
ACL	64K
Number of Wireless Users	6,400
MAC Address Table	16K
Local Authentication	300 wireless clients
ARP Table	12K
IPv6 Neighbor Table	10K
Inter-AC Roaming Switch Time	≤50ms
Power
Power Supply	-Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz
Power Consumption	<40W
LAN
802.1Q VLAN	Support
PoE	N/A
QinQ	N/A
ACL	Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL
QoS	N/A
Bandwidth control	Support
WLAN
LAN Protocols	ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s
802.11 LAN Protocols	802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac
Pre-AX	Supported
CorrectLink	Supported
AirReorder	Supported
CAPWAP	Layer 2/Layer 3 network topology between an AP and AC Enable an AP to automatically discover an accessible AC Enable an AP to automatically upgrade software version from an AC Enable an AP to automatically download configurations from an AC Network Address Translation (NAT) traversal
Roaming	Intra-AC roaming, Inter-AC roaming
Forwarding	Local forwarding, Centralized forwarding
Wireless QoS	AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing
User Isolation	AC-based user isolation AP-based user isolation WLAN-based user isolation
Reliability	Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade
STA Management	AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold
STA RSSI Threshold	0 to 100
STA Idle Timeout	60 to 86,400 seconds
STA Average Data Rate Threshold	8 to 819,200 with the accuracy of 8Kbps
Adjusting Transmit Power of Beacon and Probe Response	Support
Offline Syslog	Support
Security
IPv4/v6 Security	Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication
PPSK	Supported
Virtual AP	Supported
Virtual AC	Supported
802.11 Security and Encryption	Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing
AAA	IEEE 802.1X
CPP	Support
NFPP	Support
WIDS/WIPS	Support
Internet Protocols
IPv4 Protocols	Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client
IPv6 Protocols	DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel Manual configuration address, automatic local address
IPv4 Routing	Static routing, OSPF
IPv4 Routing Table Capacity	8K
IPv4 Static Routing Table Capacity	1K
IPv6 Routing	Static routing
IPv6 Routing Table Capacity	1K
IPv6 Static Routing Table Capacity	1K
Management and Maintenance
Network Management	SNMP v1/v2c/v3, Web management, Syslog
Network Management Platform	Web management (Smart-web), RG-SNC management, Heat Map diagram
WIS Integration	Supported
User Access Management	Login via console port Login via Telnet Login via SSH Upload to FTP
Physical Specification & Others
Lock	Support
LED Indicators	Status, Link/ACT
Dimensions (W x D x H) (mm)	440 × 200 × 43.6
Rack Height	1RU
Weight	2kg
Environmental Specifications
Temperature	Operating Temperature: 0ºC to 45ºC Storage Temperature: -40ºC to 70ºC
Humidity	Operating Humidity: 10% to 90%RH (non-condensing) Storage Humidity: 5% to 95%RH (non-condensing)
Operating Altitude	0-3000m
Certification
EMC Standard	GB9254 EN301 489
Safety Standard	GB4943 EN/IEC 60950-1
