| Features |
Specifications |
| Model |

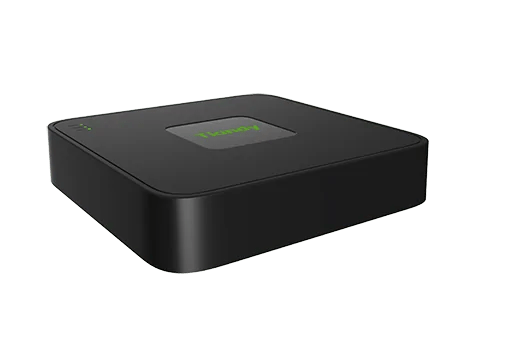

TC-R3105 Spec:I/B/P/V3.0 |
| Type |
5-Channel 1-HDD PoE NVR |
| IP Camera Input |
Up to 5 channels |
| Maximum Resolution |
Up to 6MP |
| Incoming Bandwidth |
60Mbps |
| Outgoing Bandwidth |
40Mbps |
| Video Compression |
S+265, H.265, H.264 |
Video & Audio
| Item |
Specifications |
| Recording Resolution |
6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding |
1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 5×720P, 5×4CIF |
| Playback Decoding |
1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 8×720P |
| Synchronous Playback |
Up to 8 channels |
| HDMI Output |
1× HDMI, up to 3840×2160 |
| VGA Output |
1× VGA, up to 1920×1080 |
| Audio Input |
1× 3.5mm two-way audio input |
| Audio Output |
1× RCA |
Storage
| Item |
Specifications |
| SATA Interface |
1× SATA |
| HDD Capacity |
Up to 10TB |
| eSATA |
Not Supported |
| Recording Encryption |
Supported |
| Backup |
USB and network backup |
Network & PoE
| Item |
Specifications |
| Network Interface |
1× RJ45 10/100Mbps Self-Adaptive Ethernet |
| PoE Ports |
4× RJ45 10/100Mbps |
| PoE Standard |
IEEE 802.3af |
| PoE Power per Port |
Up to 30W |
| Maximum PoE Current |
600mA per port |
| Network Protocols |
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv4, IPv6, Multicast, ARP, UDP, SSL, Telnet, RTMP, NFS |
| ONVIF |
Profile S/T/G |
| Third-Party Camera |
Supported via ONVIF and RTSP |
| P2P |
Supported |
Alarm & Intelligent Functions
| Function |
Specifications |
| Alarm Input |
0 |
| Alarm Output |
1 |
| VCA |
Supported |
| Motion Detection |
Supported |
| Smart IP Camera |
Supports recording, playback and backup of VCA alarms |
| Smart Search |
Supported |
Interface
| Item |
Specifications |
| USB |
2× USB 2.0 |
| Serial Interface |
Not Supported |
| HDMI |
1× HDMI |
| VGA |
1× VGA |
| Audio Input |
1× 3.5mm |
| Audio Output |
1× RCA |
General
| Item |
Specifications |
| Web Version |
Web6 |
| Power Supply |
DC48V |
| Power Consumption |
20W without HDD |
| Operating Temperature |
-10°C ~ 55°C |
| Operating Humidity |
10% ~ 90% RH |
| Chassis |
1U |
| Dimensions |
44 × 255 × 231mm |
| Net Weight |
Approx. 0.59kg without HDD |
Note: The TC-R3105 Spec:I/B/P/V3.0 supports up to 5 IP cameras, 4 PoE ports, 6MP recording resolution and one SATA HDD.
Important: Specifications are based on Tiandy TC-R3105 Spec:I/B/P/V3.0. Actual specifications may vary depending on hardware and firmware version.
