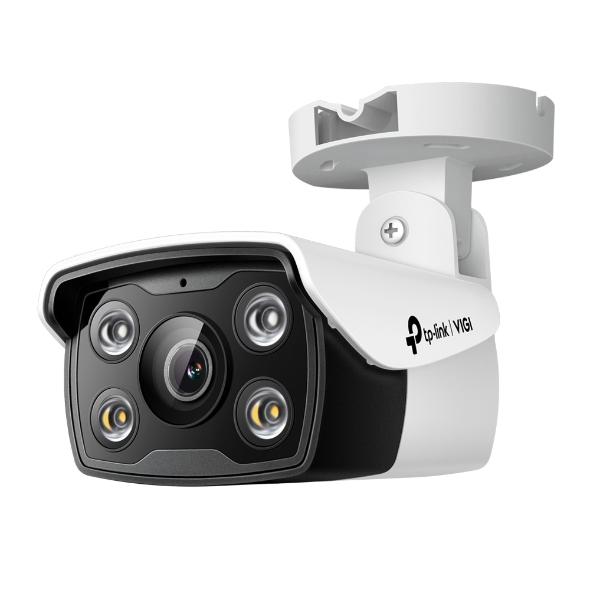

Specifications TP-Link VIGI C330

Features	Description
Device Type	3MP Outdoor Infrared Fixed Bullet Network Camera
Brand / Series	TP-Link / VIGI Professional Surveillance Series
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	3 Megapixel (2304 × 1296) @ 30 fps
Lens Options	2.8 mm or 4 mm fixed focal lens
Minimum Illumination	Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
IR Range	Up to 30m (98ft) Night Vision
Video Compression	H.265+ / H.265 / H.264+ / H.264
Protection	IP67 Weatherproof

CAMERA
Sensor	1/2.8″ Progressive Scan CMOS
Minimum Illumination	Color: 0.005 Lux, 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch
Shutter	Auto / Manual, 1/3 to 1/10000s
WDR	Digital WDR (DWDR)
S/N Ratio	>52 dB

LENS
Lens Type	Fixed Focal Lens
Focal Length	2.8 mm or 4 mm
Aperture	F1.6
Horizontal FOV	2.8mm: 102°, 4mm: 83°
Vertical FOV	2.8mm: 55°, 4mm: 44°
Diagonal FOV	2.8mm: 122°, 4mm: 99°

VIDEO
Video Compression	H.265+ / H.265 / H.264+ / H.264
Main Stream	2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 @ 30fps
Sub Stream	720 × 576, 720 × 480, 352 × 288, 640 × 480 @ 30fps
Bit Rate Control	CBR / VBR
ROI	1 Fixed Region
Video Stream	Dual Streams

Digital Noise Reduction	3D DNR
BLC / HLC	Supported
Image Settings	Mirror, Saturation, Brightness, Contrast, Sharpness, White Balance, AGC adjustable by client software

SMART FEATURES
Smart Detection	Human & Vehicle Classification, Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Tampering Detection
Alarm Trigger	Video Tampering, Network Disconnection, IP Address Conflict
Method of Linkage	Trigger Notification, Snapshot, Video Recording

ILLUMINATOR
IR Range	Up to 30m
Wavelength	850nm
Light Control	Auto / Manual
Smart IR	Supported

STORAGE
Edge Storage	Built-in MicroSD Card Slot, Support up to 256 GB
Network Storage	NAS (NFS, SMB/CIFS)

NETWORK
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
ONVIF	Profile S
Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, RTCP, PPPoE, SMTP, UPnP
Simultaneous Live View	Up to 6 Channels
Security	Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

AUDIO & ALARM
Audio Input	Built-in Microphone (for audio monitoring)
Audio Output	None
Alarm Input	None
Alarm Output	None

POWER & PROTECTION
Power Supply	12V DC ± 10%, 5.5mm Coaxial Power Plug / PoE (802.3af/at, class 0)
Maximum Power Consumption	12V DC: Max 3W; PoE: Max 4W
Protection	IP67 Weatherproof

PHYSICAL & ENVIRONMENT
Dimensions	172 × 84 × 71 mm
Weight	0.20 kg
Operating Temperature	-30°C to 60°C
Operating Humidity	95% or less (non-condensing)

Note: The TP-Link VIGI C330 is a 3MP outdoor infrared fixed bullet network camera designed for professional security applications. Unlike the “I” variant (C330I), the standard VIGI C330 model includes an on-board MicroSD card slot supporting up to 256GB for local edge storage backup, alongside clear 3MP video at 30 fps, smart human and vehicle detection, and a built-in microphone.

Important: The VIGI C330 features 3MP resolution with fixed lens options of 2.8mm or 4mm and a built-in MicroSD card slot for local recording up to 256GB. It includes advanced Smart Detection for human and vehicle classification, network connectivity via a 10/100M Ethernet port supporting 12V DC or PoE (802.3af/at), and an IP67 weatherproof enclosure designed for reliable operation between -30°C and 60°C.
