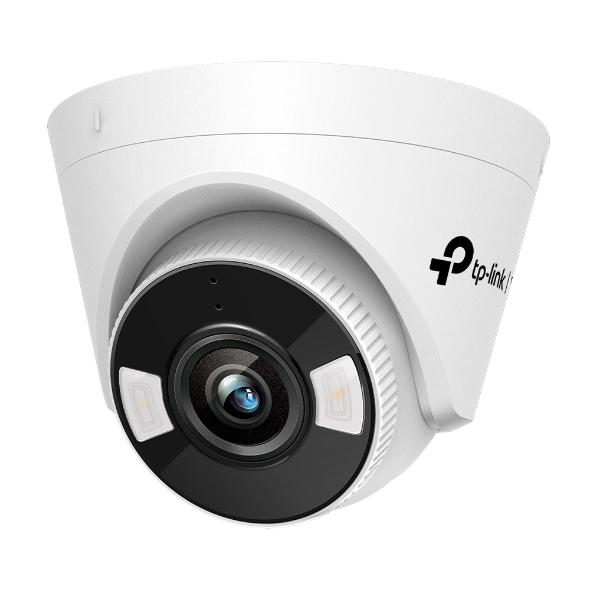

Specifications TP-Link VIGI C430
| Features | Description |
|---|---|
| Device Type | 3MP Outdoor/Indoor Infrared Fixed Turret Network Camera |
| Brand / Series | TP-Link / VIGI Professional Surveillance Series |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 3 Megapixel (2304 × 1296) @ 30 fps |
| Lens Options | 2.8 mm or 4 mm fixed focal lens |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR |
| IR Range | Up to 30m (98ft) Night Vision |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Protection | IP67 Weatherproof |
| CAMERA | |
|---|---|
| Sensor | 1/2.8″ Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux, 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch |
| Shutter | Auto / Manual, 1/3 to 1/10000s |
| WDR | Digital WDR (DWDR) |
| S/N Ratio | >52 dB |
| LENS | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm or 4 mm |
| Aperture | F1.6 |
| Horizontal FOV | 2.8mm: 102°, 4mm: 83° |
| Vertical FOV | 2.8mm: 55°, 4mm: 44° |
| Diagonal FOV | 2.8mm: 122°, 4mm: 99° |
| VIDEO | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Main Stream | 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 @ 30fps |
| Sub Stream | 720 × 576, 720 × 480, 352 × 288, 640 × 480 @ 30fps |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region |
| Video Stream | Dual Streams |
| IMAGE | |
|---|---|
| Digital Noise Reduction | 3D DNR |
| BLC / HLC | Supported |
| Image Settings | Mirror, Saturation, Brightness, Contrast, Sharpness, White Balance, AGC adjustable by client software |
| SMART FEATURES | |
|---|---|
| Smart Detection | Human & Vehicle Classification, Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Tampering Detection |
| Alarm Trigger | Video Tampering, Network Disconnection, IP Address Conflict |
| Method of Linkage | Trigger Notification, Snapshot, Video Recording |
| ILLUMINATOR | |
|---|---|
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Light Control | Auto / Manual |
| Smart IR | Supported |
| STORAGE | |
|---|---|
| Edge Storage | Built-in MicroSD Card Slot, Support up to 256 GB |
| Network Storage | NAS (NFS, SMB/CIFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| ONVIF | Profile S |
| Network Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, RTCP, PPPoE, SMTP, UPnP |
| Simultaneous Live View | Up to 6 Channels |
| Security | Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication |
| AUDIO & ALARM | |
|---|---|
| Audio Input | Built-in Microphone (for audio monitoring) |
| Audio Output | None |
| Alarm Input | None |
| Alarm Output | None |
| POWER & PROTECTION | |
|---|---|
| Power Supply | 12V DC ± 10%, 5.5mm Coaxial Power Plug / PoE (802.3af/at, class 0) |
| Maximum Power Consumption | 12V DC: Max 3W; PoE: Max 4W |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø123 × 83 mm |
| Weight | 0.195 kg |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or less (non-condensing) |
Note: The TP-Link VIGI C430 is a 3MP outdoor/indoor infrared fixed turret network camera built for professional security monitoring. Unlike the “I” variant (C430I), the standard VIGI C430 includes a built-in MicroSD card slot supporting up to 256GB for local edge storage backup, alongside 3MP resolution at 30 fps, smart human and vehicle classification, and a built-in microphone.
Important: The VIGI C430 features a 3MP resolution sensor in a turret housing with fixed lens choices of 2.8mm or 4mm and a built-in MicroSD card slot supporting up to 256GB. It includes advanced Smart Detection capabilities for human and vehicle classification. Connectivity relies on a 10/100M Ethernet interface supporting 12V DC or PoE (802.3af/at), and the unit carries an IP67 weatherproof rating for reliable outdoor/indoor operation between -30°C and 60°C.
