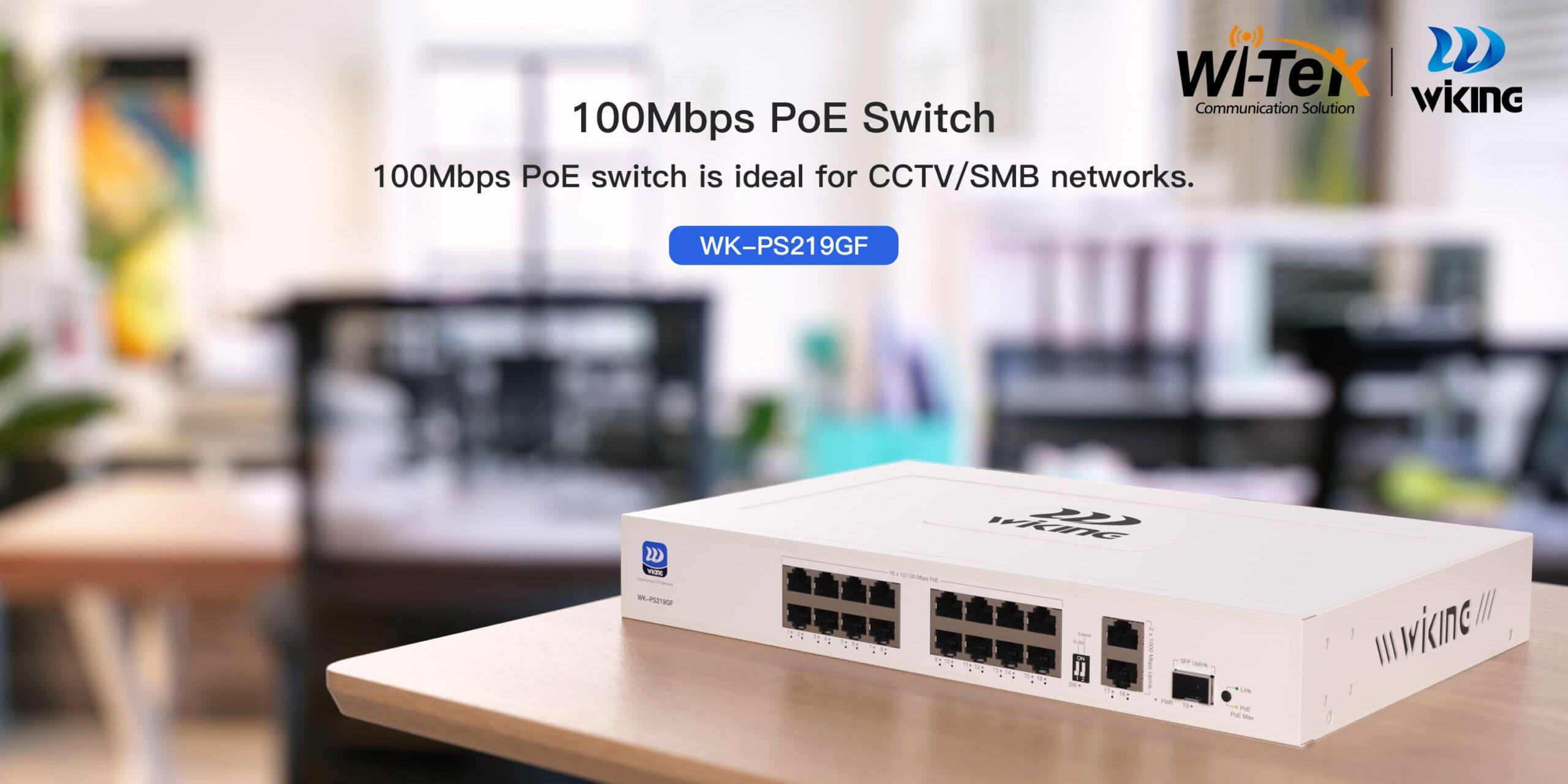

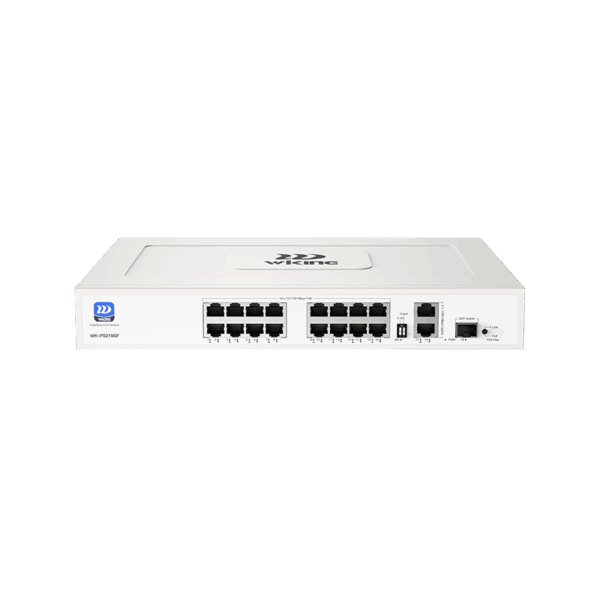

Wi-Tek WK-PS219GF

16-Port PoE Switch with SFP Uplink

  • 16×10/100Mbps PoE ports with 2×Gigabit Uplink ports

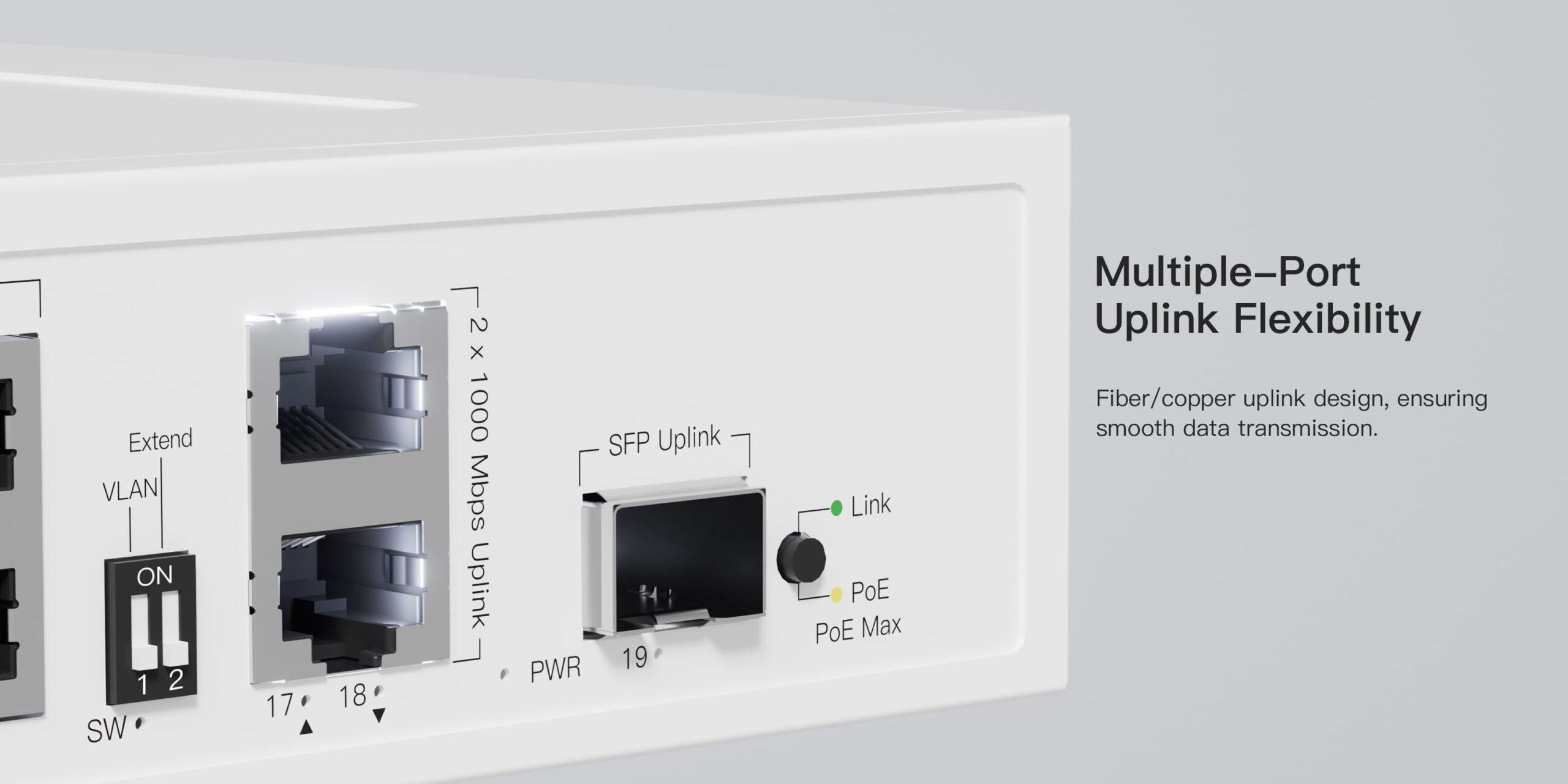

  • 1×Gigabit SFP slot for fiber connection
  • Supports PoE budget up to 180W with Hi-PoE 60W
  • Supports Extend PoE up to 250m, VLAN and PD Alive
  • Fanless metal design with quiet operation
  • Plug & Play suitable for CCTV and network devices
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คุณสมบัติ Wi-Tek WK-PS219GF

Features Description
Device Type 16-Port 100Mbps PoE Switch with Gigabit Uplink
Network Ports 16 × 10/100Mbps PoE Ports + 2 × Gigabit RJ45 Uplink Ports + 1 × Gigabit SFP Port
PoE Standard IEEE 802.3af/at PoE+
PoE Budget Up to 180W Total PoE Power Budget

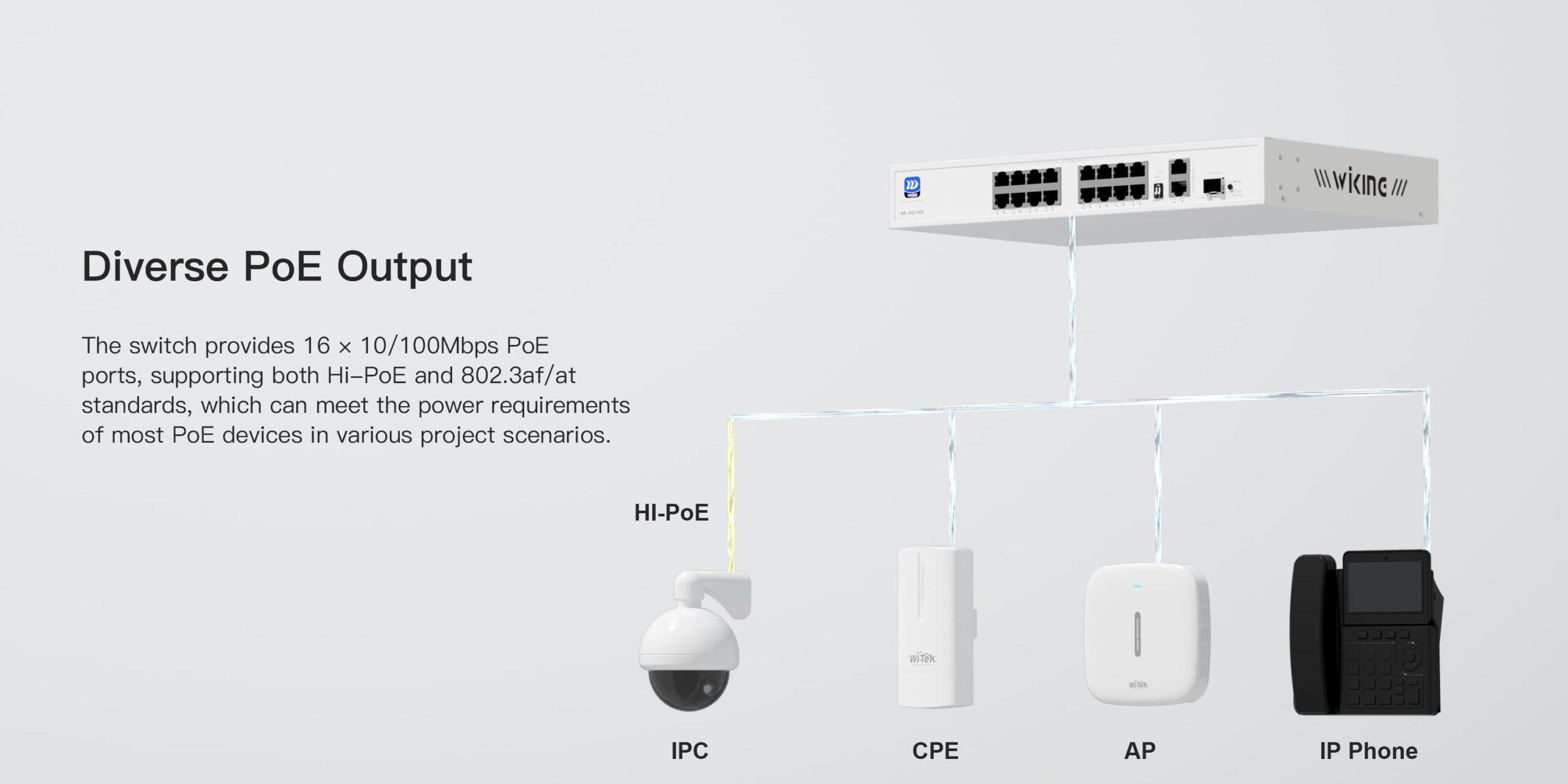

PoE Output Port 1 Hi-PoE up to 60W / Port 2-16 up to 30W
Transmission Distance Extend PoE Transmission Distance Up to 250m
Switch Capacity 9.2 Gbps
Smart Functions Port Isolation, Extend Mode, PD Alive Function
Design Metal Housing with Fanless Silent Operation
Application IP Camera, Wireless AP, IP Phone, Network Devices
Power Supply AC 100-240V
Device Type Unmanaged PoE Ethernet Switch
PoE Ports 16 × 10/100Mbps RJ45 PoE Ports
Uplink Ports 2 × 10/100/1000Mbps RJ45 Ports
SFP Port 1 × 1000Mbps SFP Slot
Switching Capacity 9.2 Gbps
Packet Forwarding Rate 6.84 Mpps
MAC Address Table 2K
PoE FEATURES
PoE Standard IEEE 802.3af / IEEE 802.3at
Port 1 Hi-PoE Up to 60W
Port 2-16 PoE+ Up to 30W Per Port
Total PoE Budget Up to 180W
PoE Pin Assignment 1/2(+), 3/6(-)
SMART FEATURES
Extend Mode Extends PoE Data and Power Transmission Up to 250m

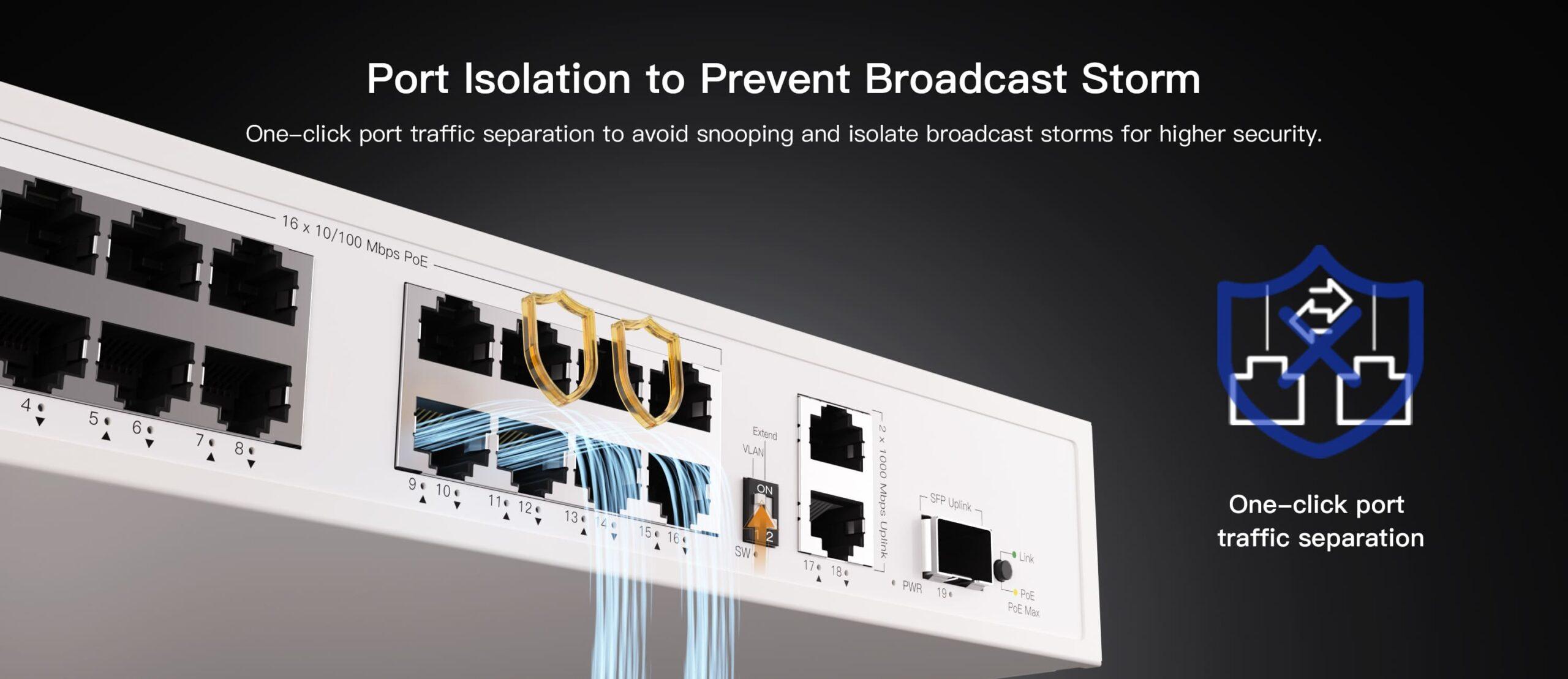

Port Isolation Isolates PoE Ports to Improve Network Security

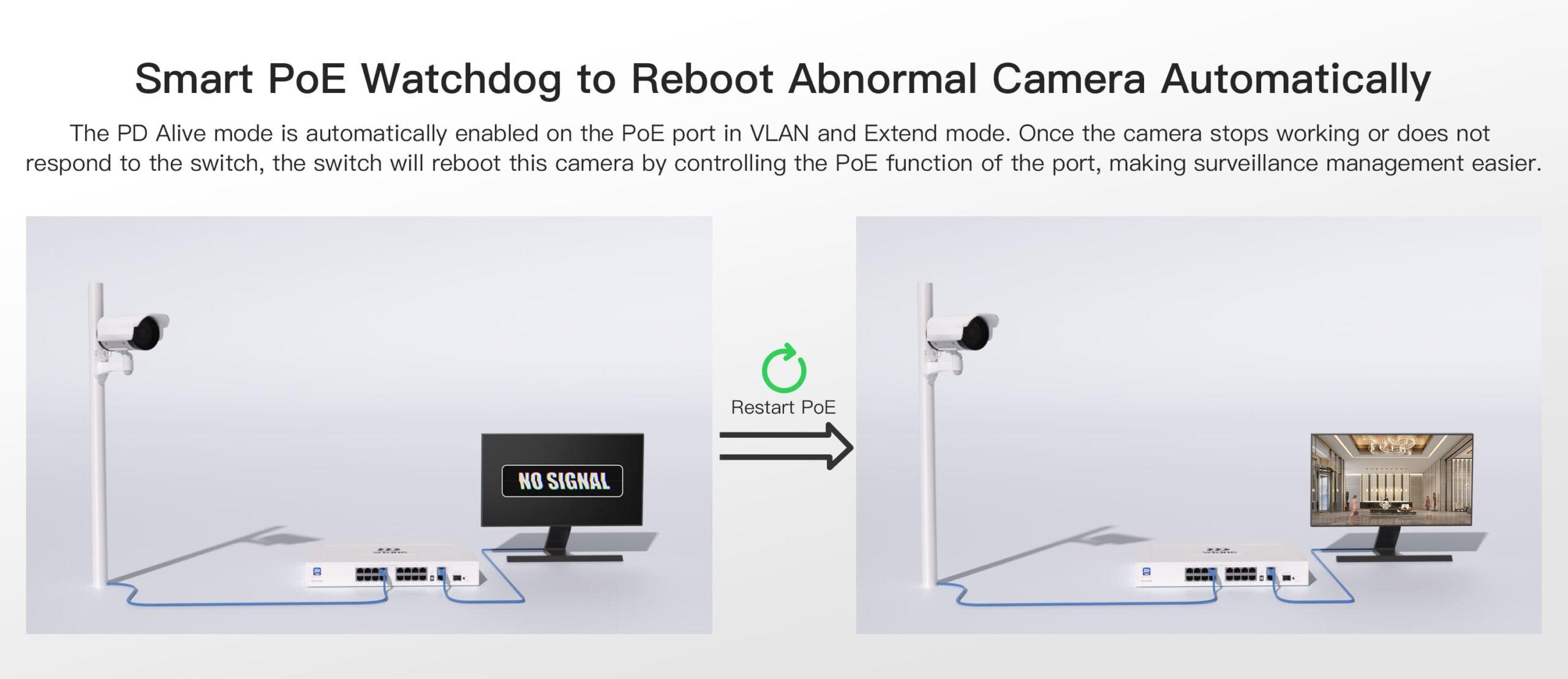

PD Alive Automatically Detects and Reboots Unresponsive PoE Devices
Plug & Play No Configuration Required
NETWORK
Network Standard IEEE 802.3 / IEEE 802.3u / IEEE 802.3x / IEEE 802.3z / IEEE 802.3af / IEEE 802.3at
Transmission Method Store and Forward
Jumbo Frame 2KB
Flow Control IEEE 802.3x Full Duplex Flow Control
PROTECTION
Surge Protection Up to ±4kV
ESD Protection Contact ±6kV / Air ±8kV
Housing Metal Case
Cooling Fanless Passive Cooling
GENERAL
Power Supply AC 100-240V, 50/60Hz
Power Consumption Max. 190W (With PoE Load)
Operating Temperature -10°C to 50°C
Operating Humidity 10% to 90% RH (Non-Condensing)
Dimensions 320 × 207 × 45 mm
Weight Approx. 1.61 kg

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation. :contentReference[oaicite:0]{index=0}

Important: The Wi-Tek WK-PS219GF is a 16-port PoE switch designed for CCTV and network installations. It provides 16 × 10/100Mbps PoE ports, 2 Gigabit RJ45 uplinks, 1 Gigabit SFP slot, up to 180W PoE budget, Hi-PoE support up to 60W on Port 1, Extend Mode up to 250 meters, Port Isolation, and PD Alive automatic PoE device restart function. Suitable for IP cameras, wireless access points, and enterprise CCTV systems.
