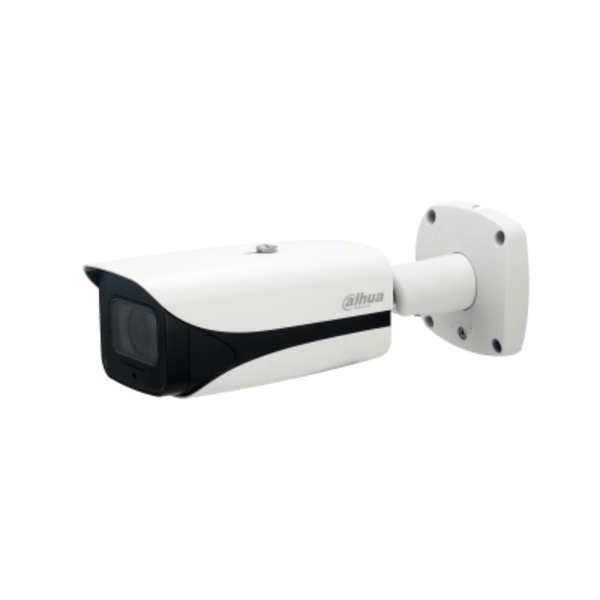

IPC-HFW8241E-Z

IPC-HFW8241E-Z5

IPC-HFW8241E-Z

Dahua รุ่น IPC-HFW8241E-Z

2MP IR AI Bullet Network Camera

  • 1/2.8” 2Megapixel progressive scan CMOS
  • รองรับระบบ H.265&H.264
  • อัตราเฟรมเรท 50/60fps@1080P(1920×1080)
  • WDR(140dB)ย้อนแสง, โหมดกลางวัน / กลางคืน(ICR), 3DNR,AWB,AGC,BLC
  • ตรวจสอบเครือข่ายหลายช่องทาง: Web viewer, CMS(DSS/PSS) & DMSS
  • เลนส์ 2.7mm ~13.5mm
  • รองรับ  SD การ์ด, รองรับ PoE+
  • ระยะอินฟาเรท 50 เมตร
หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 1024MB/4096MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.006Lux/F1.6 (Color,1/3s,30IRE)

0.05Lux/F1.6 (Color,1/30s,30IRE)

0Lux/F1.6 (IR on)
S/N Ratio Less than 50dB
IR Distance Distance up to 50m(164ft)
IR On/Off Control Auto/Manual
IR LEDs 4
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 2.7~13.5mm motorized
Max. Aperture F1.6
Angle of View H: 107.17° ~ 31.82°, V: 56.47° ~ 17.62°
Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.3m(0.98ft)
DORI Distance Lens Detect Observe Recognize Identify
W 44m(144ft) 18m(59ft) 9m(29ft) 4m(13ft)
T 153m(502ft) 61m(200ft) 31m(102ft) 15m(49ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Artificial Intelligence
People Counting Line crossing people counting, Region people counting, Loitering filter
Perimeter Protection Tripwire, Intrusion(Human&Vehicle classification)
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence N/A
Video
Compression H.265/H.264/H.264B/H.264H/MJPEG(sub stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)
Frame Rate Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~19/29fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(140dB)/ SSA
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) Support
Smart IR Support
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S

NMP;TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Micro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 1 port
Alarm 2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply DC12V, PoE(802.3at)(Class 4)
Power Consumption DC12V:4.4W 14.7W(IR on)

PoE:4.4W 14.3W(IR on)
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 273.2mm*95mm*96.4mm
Net Weight 0.96Kg (2.12lb)
