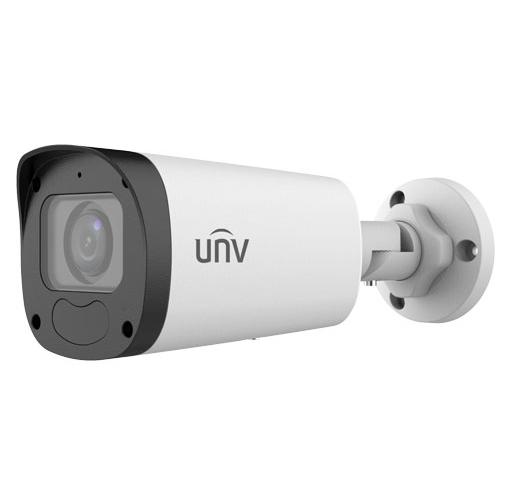

IPC2325LB-ADZK-G
Uniview รุ่น IPC2325LB-ADZK-G
5MP HD IR Bullet Network Camera
- ภาพคุณภาพสูงด้วยเซนเซอร์ CMOS 1/2.7″ 5MP
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- อัลตร้า 265, H.265, H.264, MJPEG
- เทคโนโลยี WDR จริง 120dB ช่วยให้ได้ภาพที่ชัดเจนในฉากที่มีแสงจ้า
- รองรับโหมดทางเดิน 9:16
- ไมค์ในตัว
- IR อัจฉริยะ ระยะ IR สูงสุด 50 ม. (164 ฟุต)
- รองรับการ์ด Micro SD 256 G
- การป้องกัน IP67
- รองรับแหล่งจ่ายไฟ PoE
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Uniview IPC2325LB-ADZK-G
5MP HD IR Bullet Network Camera
• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
• 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC2325LB-ADZK-G | |||||||
| Camera | |||||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| S/N | >56dB | ||||||
| WDR | 120dB | ||||||
| Lens | |||||||
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 108.79°~ 33.23° | ||||||
| Field of View (V) | 56.90°~ 18.33° | ||||||
| Field of View (D) | 112.56°~37.46° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270.0 | 108.0 | 54.0 | 27.0 | |||
| Illuminator | |||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Support | ||||||
| 9:16 Corridor Mode | Support | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video stream | Dual streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Cross line, intrusion(based on human body detection) | ||||||
| Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way Audio | N/A | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive |
||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Serial Port | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certification | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 8.5W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) | ||||||
| Weight | 0.55kg (1.2lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Reset Button | Support | ||||||
