Omada SG2210XMP-M2 | 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+

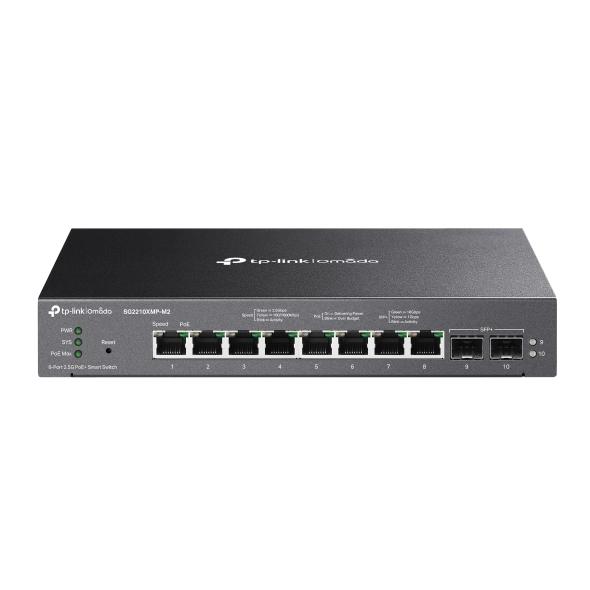

TP-Link Omada SG2210XMP-M2
8-Port 2.5G Smart PoE+ Switch
- 8×2.5Gbps RJ45 PoE+ ports with 2×10G SFP+ slots
- Supports IEEE 802.3af/at PoE with 160W PoE budget
- Up to 30W PoE output per port for Wi-Fi 6/7 APs and devices
- Supports VLAN, QoS, ACL, Static Routing and Link Aggregation
- Cloud management via Omada SDN Controller and Omada App
- Fanless metal design with desktop/wall-mount installation
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ Omada SG2210XMP-M2
| Features | Description |
|---|---|
| Device Type | 10-Port 2.5G Smart PoE+ Switch with 10G SFP+ Uplink |
| Network Ports | 8 × 10/100/1000/2500Mbps PoE+ RJ45 Ports + 2 × 10Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | Up to 160W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| Management | Omada Cloud Controller, Web GUI, Omada App, CLI |
| Smart Features | VLAN, QoS, ACL, Static Routing, IGMP Snooping |
| Design | Fanless Metal Housing |
| Application | Wi-Fi 6/7 Access Point, IP Camera, Enterprise Network |
| Device Type | Omada Smart 2.5G PoE+ Switch |
|---|---|
| Network Ports | 8 × 2.5GBASE-T PoE+ RJ45 Ports |
| Uplink Ports | 2 × 10G SFP+ Slots |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | 8 × 2.5G PoE+ Ports |
| Total PoE Budget | 160W |
| PoE Output | Up to 30W Per Port |
| PoE Functions | Fast PoE, Perpetual PoE |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, Port Security |
| Multicast | IGMP Snooping v1/v2/v3 |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3bz / 802.3z / 802.3af / 802.3at / 802.3x |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Routing | IPv4 / IPv6 Static Routing |
| GENERAL | |
|---|---|
| Housing | Metal Desktop / Wall-Mount Case |
| Cooling | Fanless Design |
| Power Supply | 53.5VDC / 3.37A Adapter |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 226 × 131 × 35 mm |
| Installation | Desktop / Wall Mount |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG2210XMP-M2 is a 2.5G Smart PoE+ switch with 8 PoE+ ports, 160W PoE budget, and dual 10G SFP+ uplinks. Designed for high-speed Wi-Fi 6/7 access points, IP cameras, and enterprise networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
