Omada SG3452XMPP | 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

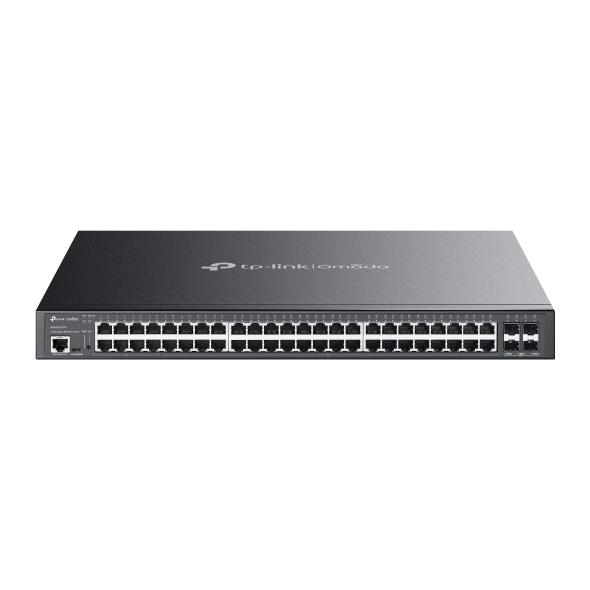

TP-Link Omada SG3452XMPP
48-Port Gigabit L2+ Managed PoE++ Switch
- 48×Gigabit RJ45 ports with 4×10G SFP+ uplink slots
- 8×PoE++ ports (90W/port) and 40×PoE+ ports (30W/port)
- Supports IEEE 802.3af/at/bt with 750W PoE budget
- Supports VLAN, ACL, QoS, IGMP Snooping and Static Routing
- Cloud management via Omada SDN Controller and Omada App
- Rackmount design suitable for enterprise, CCTV and Wi-Fi 6/7 networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ Omada SG3452XMPP
| Features | Description |
|---|---|
| Device Type | 48-Port Gigabit L2+ Managed PoE Switch with 10G SFP+ Uplink |
| Network Ports | 48 × Gigabit RJ45 Ports + 4 × 10Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at/bt PoE |
| PoE Budget | Up to 750W Total PoE Power Budget |
| PoE Output | 8 × PoE++ Up to 90W / 40 × PoE+ Up to 30W |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.95 Mpps |
| Management | Omada Cloud Controller, Web GUI, CLI, SNMP, RMON |
| Smart Features | VLAN, ACL, QoS, Static Routing, ERPS, IGMP Snooping |
| Design | Metal Rackmount Case with Smart Fans |
| Application | Enterprise Network, IP Camera, Wi-Fi 6/7 Access Point |
| Device Type | Omada L2+ Managed Gigabit PoE Switch |
|---|---|
| Network Ports | 48 × Gigabit RJ45 Ports (40 × PoE+ / 8 × PoE++) |
| Uplink Ports | 4 × 10G SFP+ Slots |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.95 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports | 48 × Gigabit PoE Ports |
| Total PoE Budget | 750W |
| PoE++ Ports | 8 Ports Up to 90W Per Port |
| PoE+ Ports | 40 Ports Up to 30W Per Port |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, Port Security, DHCP Snooping |
| Multicast | IGMP Snooping v1/v2/v3, MLD Snooping |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3ae / 802.3af / 802.3at / 802.3bt |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Routing | IPv4 / IPv6 Static Routing |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | Smart Fan Design |
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 330 × 44 mm |
| Installation | Rack Mountable |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG3452XMPP is a 48-port L2+ Managed PoE switch with 750W PoE budget, 8 PoE++ ports, 40 PoE+ ports, and 4×10G SFP+ uplinks. Suitable for high-power devices, IP cameras, Wi-Fi access points, and enterprise networks.
