Product Specification

Overview

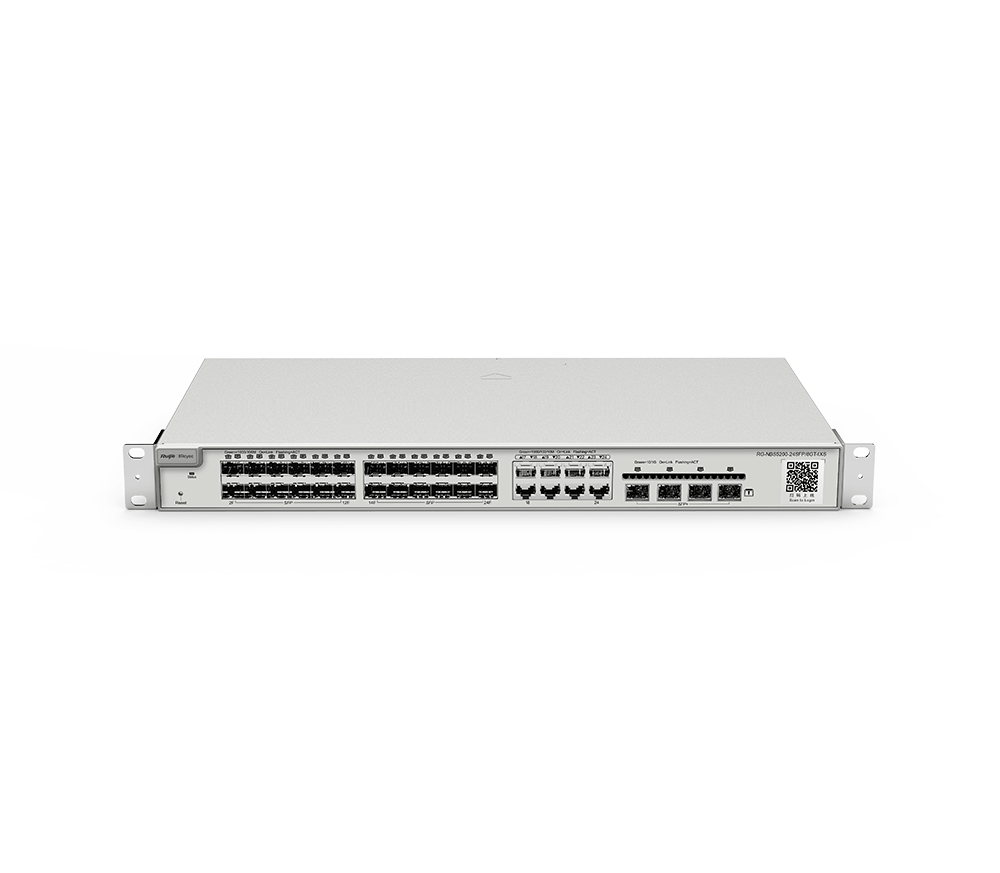

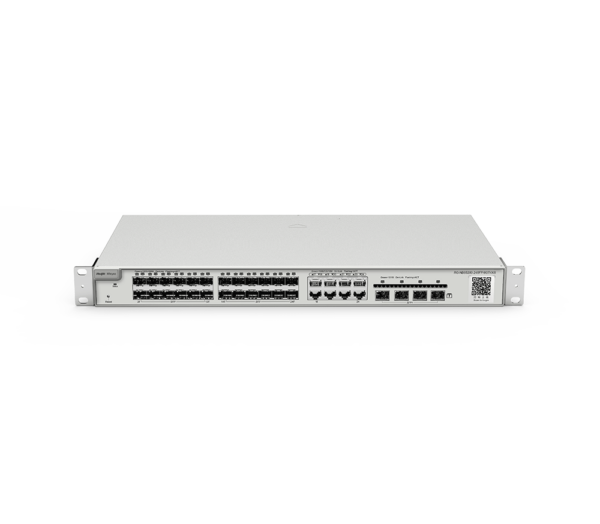

Reyee RG-NBS5200-24SFP/8GT4XS L2+ Cloud Managed Switch 24 Port SFP, 4 Port SFP+ 10Gbps, รองรับ Static Routing

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Fixed Ports

24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports

Switching capacity

336Gbps

Packet forwarding rate

108Mpps

MAC address

Support static MAC address, MAC address filtering

MAC address table size

16K

Number of VLANs

4094

Layer 3 aggregation ports

16

Link aggregation

Support

Port mirroring

Many-to-one mirroring

Spanning tree

STP, RSTP

LLDP

Support

IP routing

Support static routing

ACL

IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)

QoS

Port-based speed limit (ingress/egress)

Security

Port protection
Hardware CPP

Management

Web management, Ruijie Cloud platform or Ruijie Cloud app management

DHCP

DHCP snooping

EEE

Support

Dimensions

440×207.5×43.6mm

Temperature

Operating temperature: 0C – 50C
Storage temperature: -40C – 70C

Humidity

Operating humidity: 10% – 90% RH
Storage humidity: 5% – 90% RH
