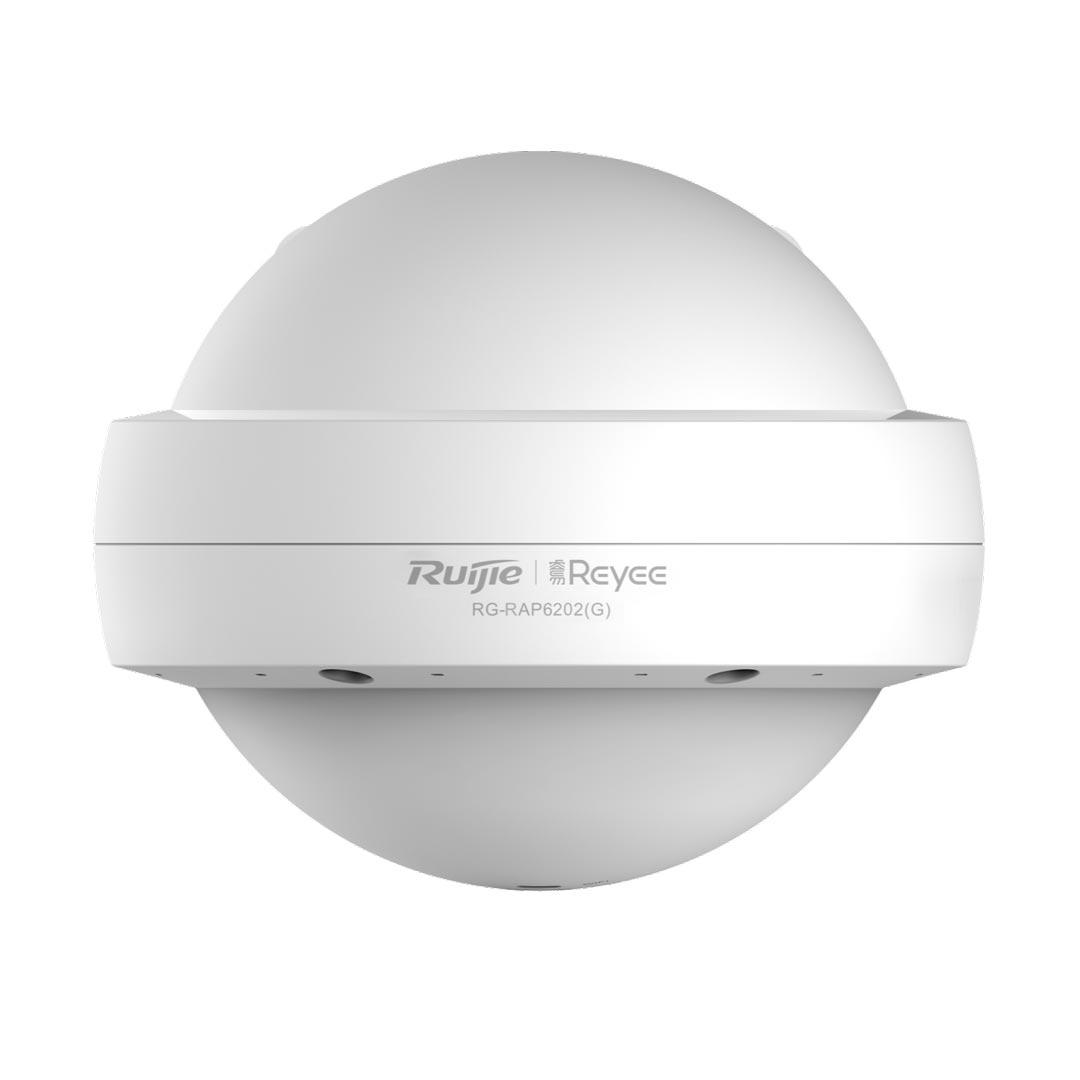

RG-RAP6202(G)
Ruijie Reyee RG-RAP6202(G)
Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
- Dual-band Wi-Fi 5 AC1300 with speeds up to 1.267Gbps
- 2×Gigabit Ethernet ports with 802.3af/at PoE and DC power support
- IP68 weatherproof design for harsh outdoor environments
- Supports Reyee Mesh, AI Roaming and Cloud Management
- Built-in high-gain omnidirectional antennas for wide outdoor coverage
- Ideal for parks, campuses, warehouses and outdoor Wi-Fi deployment
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-RAP6202(G)
| Features | Description |
|---|---|
| Device Type | Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac (Wi-Fi 5) |
| Wireless Speed | Up to 1267Mbps (400Mbps @ 2.4GHz + 867Mbps @ 5GHz) |
| Radio Design | Dual-Radio 2×2 MU-MIMO |
| Ethernet Ports | 2 × 10/100/1000BASE-T Gigabit RJ45 Ports |
| Power Supply | IEEE 802.3af/at PoE or 12V DC Adapter |
| Protection Rating | IP68 Outdoor Protection |
| Management | Ruijie Cloud, Reyee App and Web Management |
| Mounting | Wall Mount / Pole Mount |
| Application | Parks, Hotels, Warehouses, Campuses, Factories, Stadiums and Outdoor Wireless Networks |
| Access Point Type | Outdoor Wi-Fi 5 Omni-directional Access Point |
|---|---|
| Ethernet Interface | 2 × Gigabit RJ45 Ports |
| Antenna | Built-in High-Gain Omni-directional Antennas |
| Maximum Power Consumption | ≤13W |
| Installation | Wall Mount / Pole Mount |
| Protection | IP68 Waterproof, Dustproof and 4kV Surge Protection |
| SMART FEATURES | |
|---|---|
| Wi-Fi 5 Technology | Supports Dual-Band 2×2 MU-MIMO and Beamforming for Stable Wireless Performance |
| Cloud Management | Lifetime Free Remote Management via Ruijie Cloud and Reyee App |
| Reyee Mesh | Supports Reyee Mesh for Easy Outdoor Wireless Expansion |
| Outdoor Coverage | Omni-directional Coverage up to 100m (2.4GHz) and 300m (5GHz) in Open Areas |
| Security | Supports WPA2, VLAN and Access Control |
| Portal Authentication | Supports Cloud Portal Authentication |
| Outdoor Design | Completely Sealed Enclosure with Waterproof, Dustproof and Flame-Retardant Design |
| Remote Management | Supports Cloud Configuration, Monitoring and Firmware Upgrade |
| GENERAL | |
|---|---|
| Power Supply | IEEE 802.3af/at PoE or 12V DC Adapter |
| Operating Temperature | -30°C to 65°C |
| Dimensions | Ø200 × 166mm |
| Weight | ≤1kg (Without Mounting Bracket) |
| Warranty | 3 Years |
Note: The RG-RAP6202(G) is a Wi-Fi 5 AC1300 outdoor omnidirectional access point featuring dual Gigabit Ethernet ports, IP68-rated protection, Reyee Mesh, and lifetime Ruijie Cloud management. It is designed for reliable outdoor wireless coverage in parks, campuses, warehouses, factories, hotels, and public areas. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-RAP6202(G) is a Wi-Fi 5 AC1300 Outdoor Access Point with up to 1267Mbps, dual Gigabit ports, IP68 protection, Reyee Mesh, and Ruijie Cloud management—ideal for outdoor and enterprise wireless networks.
