Product Specification

Overview

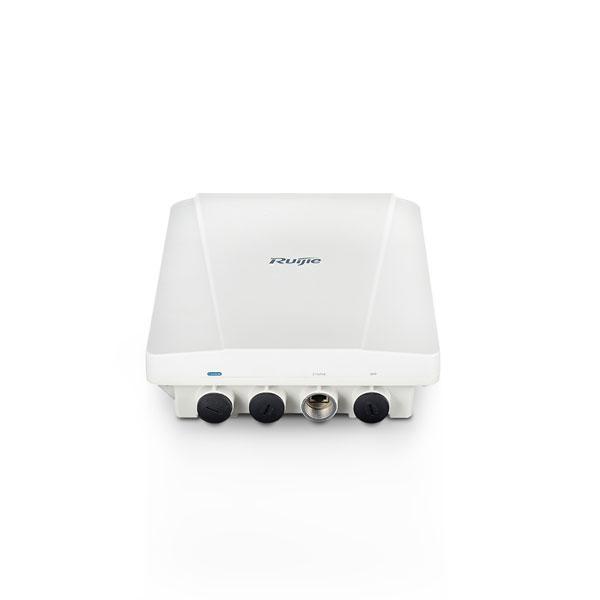

Ruijie RG-AP630(CD) Wireless Access Point AC Outdoor ความเร็ว 1.167Gbps MIMO Dual-Band, Port Lan Gigabit และ1 Port SFP (Combo) กันนำ้กันฝุ่นมาตรฐาน IP67 รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Controll

รองรับการทำ Authenticate แบบ Captive Portal, Social Login

พร้อม Ruijie Cloud License แบบ Lifetime

Radio

Concurrent dual-radio dual-band

Wireless Protocol

802.11a/b/g/n/ac

Operating Bands

802.11b/g/n: 2.4GHz to 2.483GHz

.802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz

Antenna

Built-in directional antenna

Antenna Gain

10dBi

Max Throughput

300Mbps@2.4G
867Mbps@5G
1.167Gbps per AP

Spatial Streams

2

Modulation

OFDM: BPSK@6/9Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receiver Sensitivity

11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), – 77dBm(54Mbps)
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)

Maximum Transmit Power

27dBm

Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.

IP Rating

IP67

Ports

1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector); 1 SFP port (combo with ETH1)

Power Supply

PoE (802.3af)
Compatible with POE+

Not Include

Power Consumption

<12.95W

Maximum clients per AP

Up to 512

SSID capacity

Up to 14 per radio

Up to 28 per AP

SSID hiding

Support

Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

X-speed

Support

Intelligent  load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Preference for 5GHz (band select)

Support

Wireless position tracking

Support

Dynamic Frequency Selection(DFS)

Future Release Support

PSK, Web, and 802.1x authentication

Support

Data encryption

WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication

Support

SMS authentication

Support

PEAP authentication

Support

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

WAPI

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Wireless Intrusion Detection System(WIDS)

Support

Wireless Intrusion Prevention System (WIPS)

Support

IPv4 address

Static IP address or DHCP reservation

IPv6 CAPWAP tunnel

Support

ICMPv6

Support

IPv6 address

Manual or automatic configuration

Multicast

Multicast to unicast conversion

Network management

SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management

Visualized wireless heat map analysis

Support  (need to integrate with SNC)

Real-time spectrum analysis

Support  (need to integrate with SNC)

Fault detection and alarm

Support

Cloud AC management

Support

Statistics and logs

Support

FAT/FIT switching

The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.

The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.

Lock

Support

LED Indicators

Power status and WDS signal strength

Wi-Fi Alliance Certification

Support

Safety Standard

GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22

EMC Standard

GB9254-2008, EN301 489, EN55022, FCC Part15

Health Standard

FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6

Radio Standard

FCC Part15,EN300328, EN301893

Vibration Standard

GB/T 2423

Dimensions (W x D x H) (mm)

276 × 246 × 90

Weight

<2.5kg

Temperature

Operating Temperature: -40°C to 55°C
Storage Temperature: -40°C to 70°C

Humidity

Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Installation Mode

Wall/pole-mount installation
