Tiandy TC-R3105

TC-R3105 Spec:I/B/P/V3.0

Tiandy TC-R3105

Tiandy TC-R3105

Advanced H.265 1HDD 5ch PSE NVR

Overview of Tiandy TC-R3105

The Tiandy TC-R3105 is a state-of-the-art 5-channel NVR that supports advanced S+265/H.265/H.264 encoding, delivering exceptional video compression and storage efficiency. With a maximum camera resolution of 6MP and 4K HDMI output, it is ideal for modern surveillance needs.

Key Features of Tiandy TC-R3105

  • Video Encoding: S+265/H.265/H.264 for optimal compression
  • Supports up to 5 IP cameras with a maximum resolution of 6MP
  • Equipped with 4 PoE ports, each providing 30W power
  • HDMI and VGA outputs support up to 4K (3840 × 2160) resolution
  • 1 SATA port for HDD, supporting up to 10TB of storage

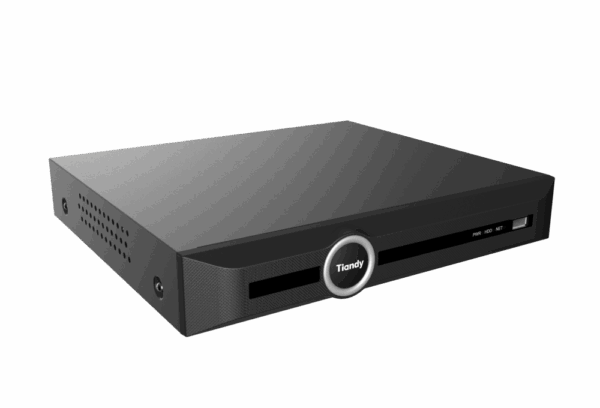

Visual Representation of Tiandy TC-R3105

Tiandy TC-R3105 H.265 1HDD 5ch PSE NVR

Technical Specifications

Specifications of Tiandy TC-R3105
Feature Details
Video Encoding S+265/H.265/H.264
Maximum Camera Resolution 6MP
PoE Ports 4 ports, 30W/port
HDMI/VGA Output 4K (3840 × 2160) resolution
Storage 1 SATA port, up to 10TB HDD

Additional Resources

Learn more about the Tiandy TC-R3105 specifications and other related products.

Check out our full range of NVR solutions for your surveillance needs.

© 2024 Surveillance Experts. All rights reserved.



หมวดหมู่: , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

KEY FEATURES
HD Input
• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 5-channel input
• 4 PoE ports
• Supports live view, storage, and playback of the
connected camera at up to 6MP resolution

HD Output
• 1×HDMI and 1×VGA simultaneous output
• HDMI Video output at up to 4K (3840 × 2160)
resolution

HD Storage
• 1 SATA interface, up to 10TB for 1 HDD
• S+265 compression effectively reduces the storage
space and costs by up to 75%

HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
• PoE Port: 4×RJ45 self-adaptive 10/100 Mbps network
interfaces

Various Applications
• Centralized management of IP cameras, including
configuration, information import/export, real-time
information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the
recording, playing back, and backing up of VCA alarms
can be realized
• VCA detection alarm is supported
• Web6 supports plug-in free browsing and can preview
videos on all browsers
• Support cloud upgrade
