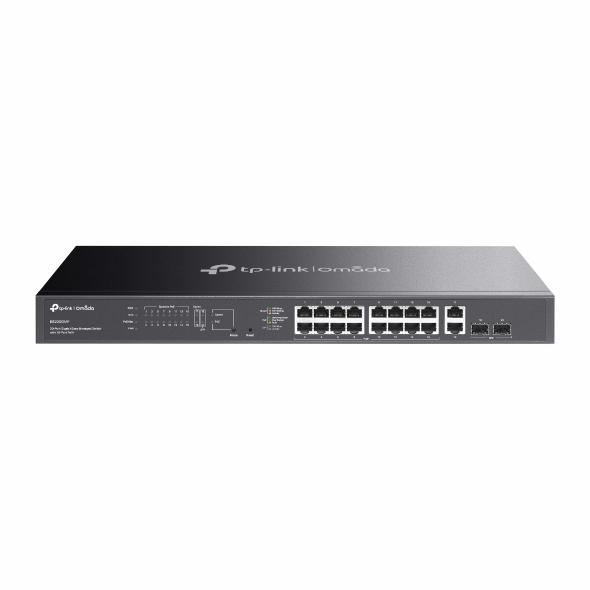

Omada ES220GMP | 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
TP-Link ES220GMP
20-Port Gigabit Easy Managed PoE+ Switch
- 16×Gigabit PoE+ ports with 4×Gigabit uplink ports
- Supports IEEE 802.3af/at with 250W PoE budget
- Supports VLAN, QoS, IGMP Snooping and Loop Prevention
- Cloud management via Omada Controller and Omada App
- Rackmount metal design with Plug & Play installation
- Ideal for IP cameras, access points and small business networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-Link ES220GMP
| Features | Description |
|---|---|
| Device Type | 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ |
| Network Ports | 16 × Gigabit PoE+ RJ45 Ports + 2 × Gigabit RJ45 Ports + 2 × Gigabit SFP Slots |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | Up to 250W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| Smart Features | Up to 250m PoE, PoE Auto Recovery, VLAN, QoS, Port Isolation |
| Application | IP Camera, Wireless AP, Enterprise, Surveillance Network |
| Power Supply | 100–240V AC, 50/60Hz |
| Device Type | Easy Managed Gigabit PoE+ Switch |
|---|---|
| Network Ports | 20 × Gigabit Ports (16 × PoE+, 2 × RJ45, 2 × SFP) |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Jumbo Frame | 15 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | 16 × PoE+ Ports (Up to 30W Per Port) |
| Total PoE Budget | 250W |
| PoE Functions | Fast PoE, Perpetual PoE, PoE Auto Recovery, Extend Mode (Up to 250m) |
| SMART FEATURES | |
|---|---|
| VLAN | 802.1Q, MTU VLAN, Port-Based VLAN |
| QoS | 802.1p / DSCP QoS, Bandwidth Control |
| Layer 2 Features | Port Isolation, Link Aggregation, Port Mirroring, LLDP, Loop Prevention |
| Multicast | IGMP Snooping v1/v2/v3 |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.1Q / 802.1p / 802.1ab |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Management | Omada Cloud Controller, Omada App, Web GUI |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | 2 × Smart Fans |
| Surge Protection | ±6kV |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 180 × 44 mm |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link ES220GMP is a 20-port Gigabit Easy Managed PoE+ switch with a 250W PoE budget, Omada cloud management, PoE Auto Recovery, and up to 250m PoE transmission. It is ideal for IP cameras, wireless access points, and enterprise surveillance networks.
